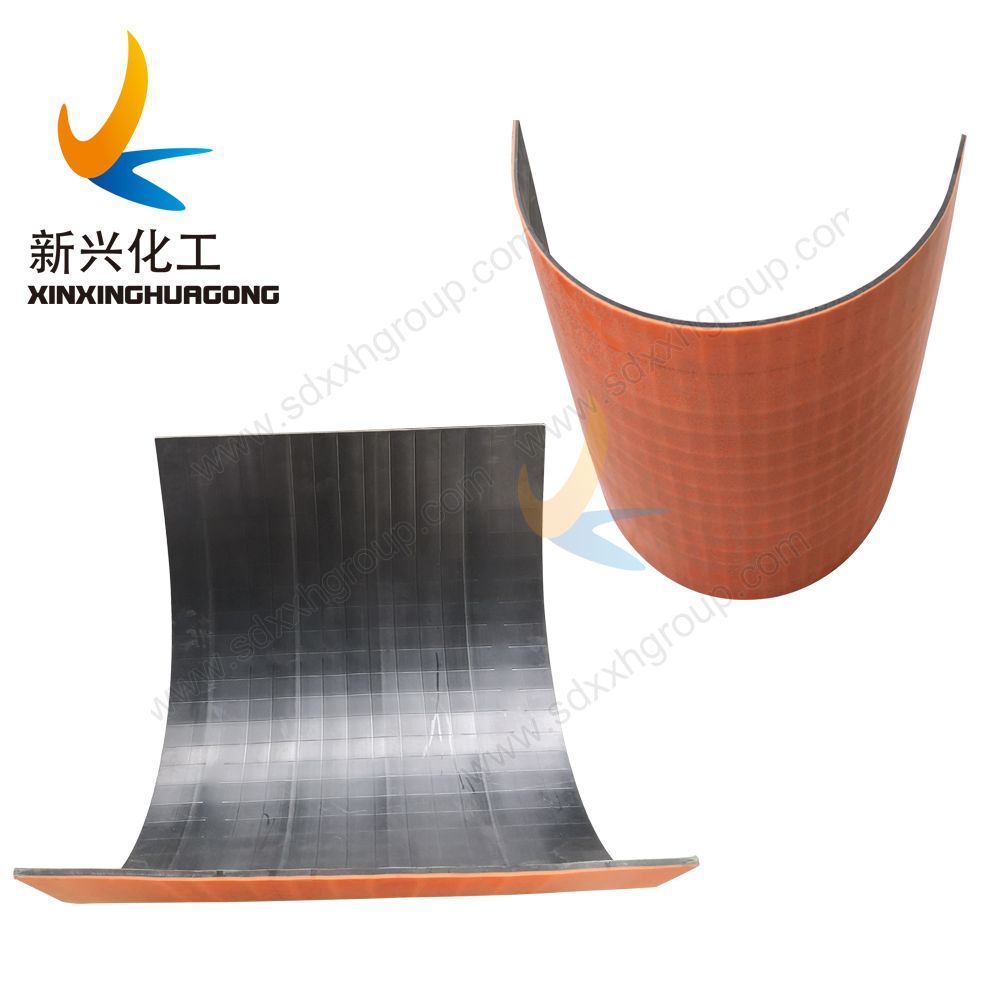

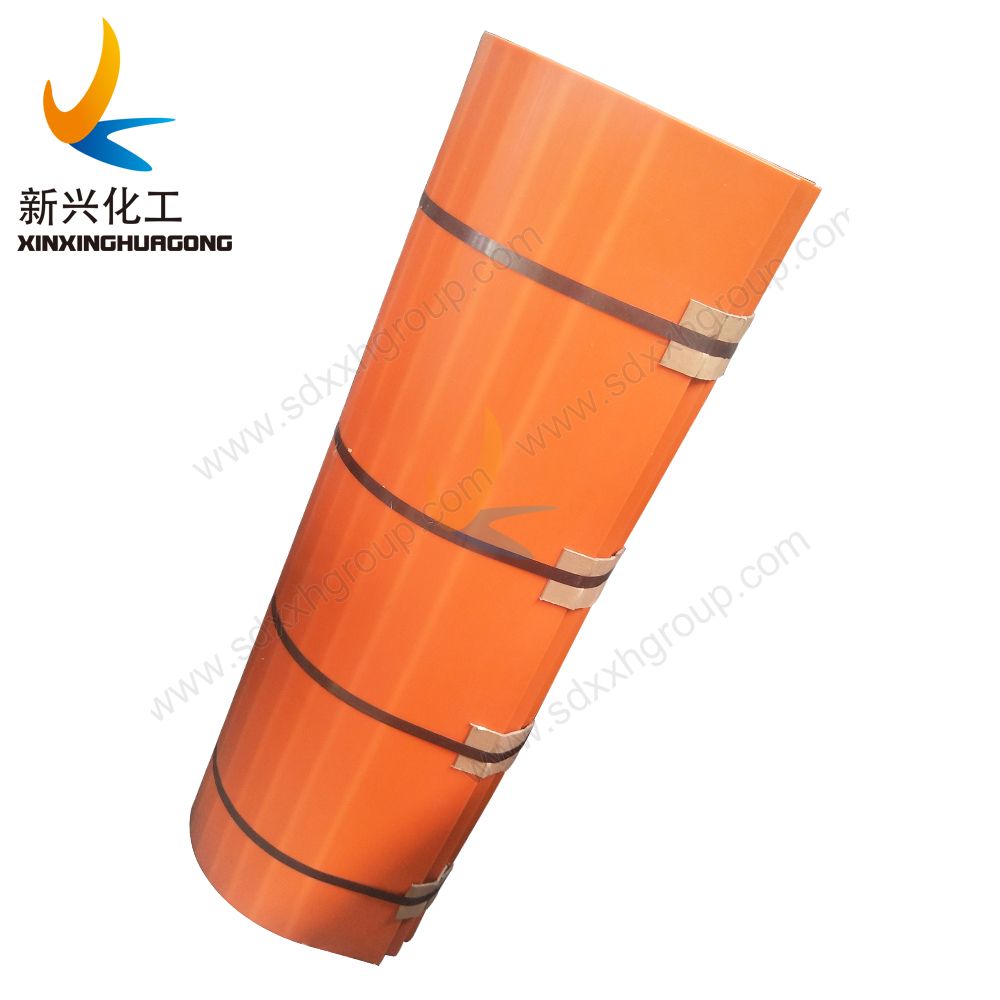

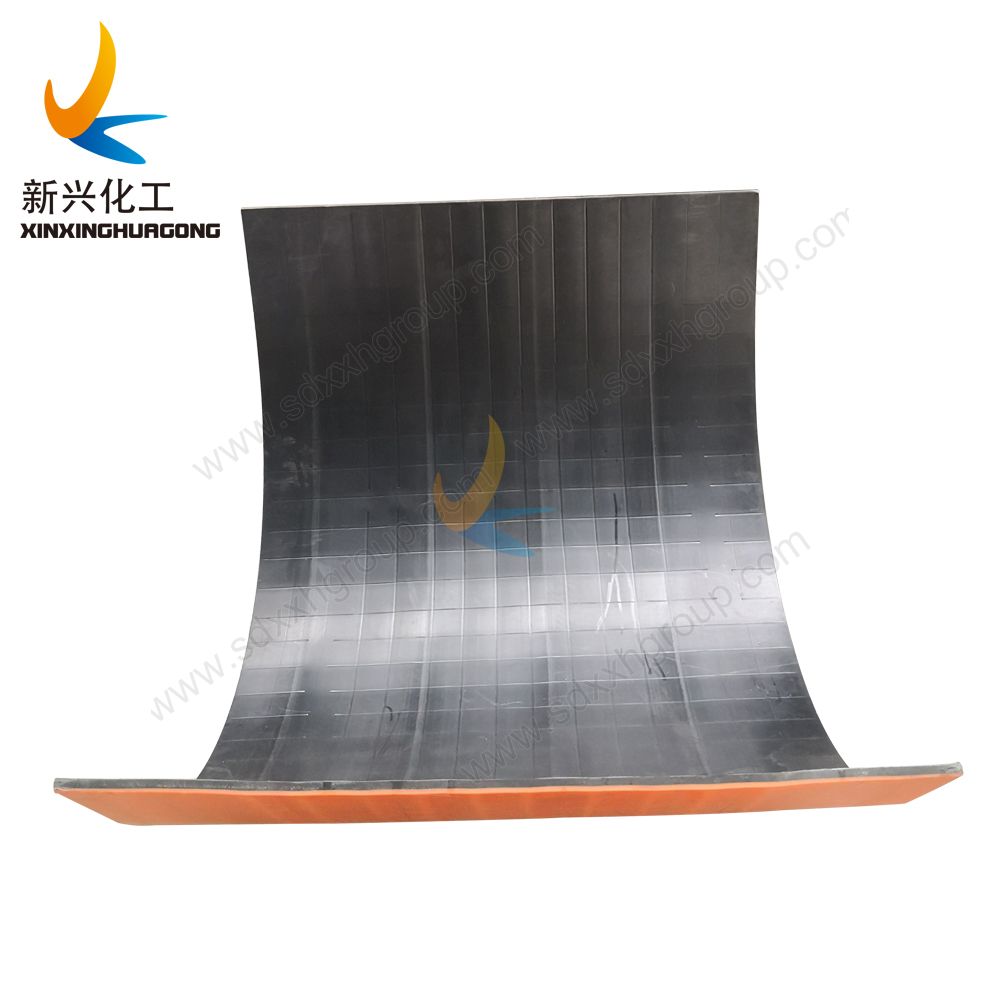

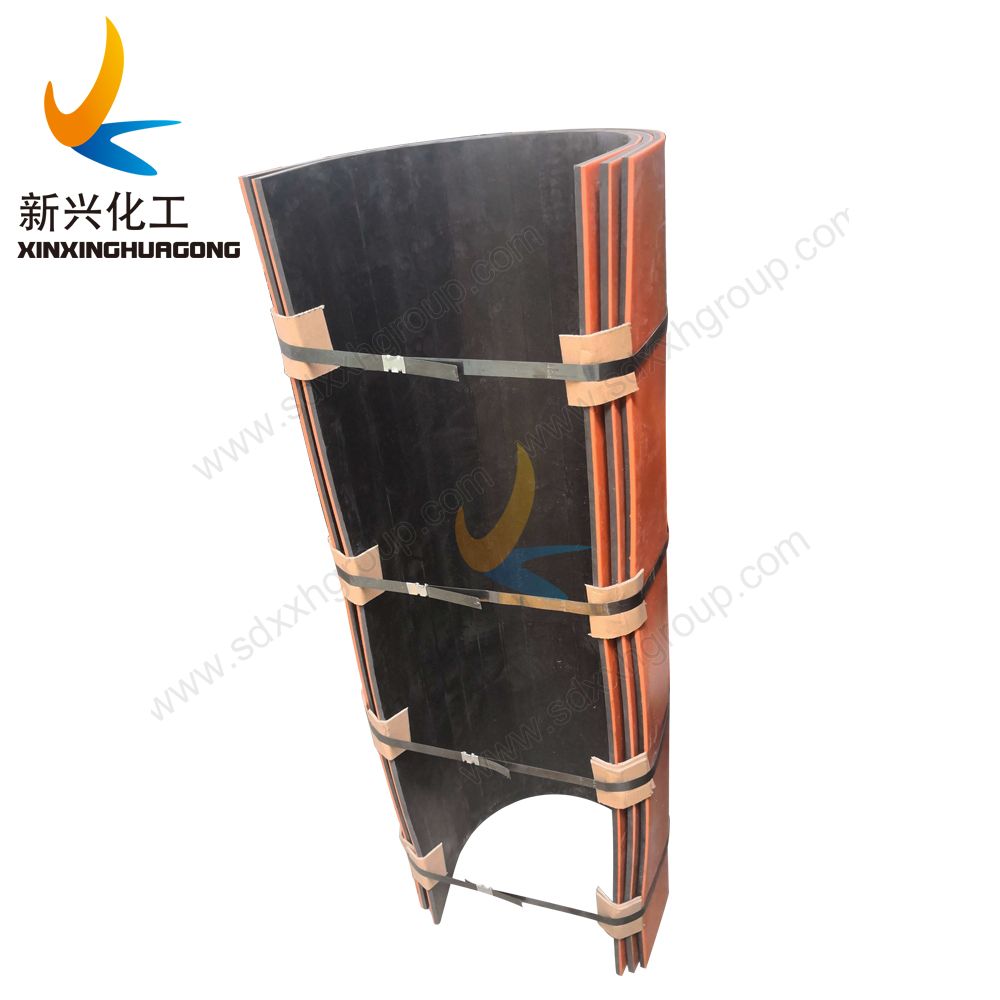

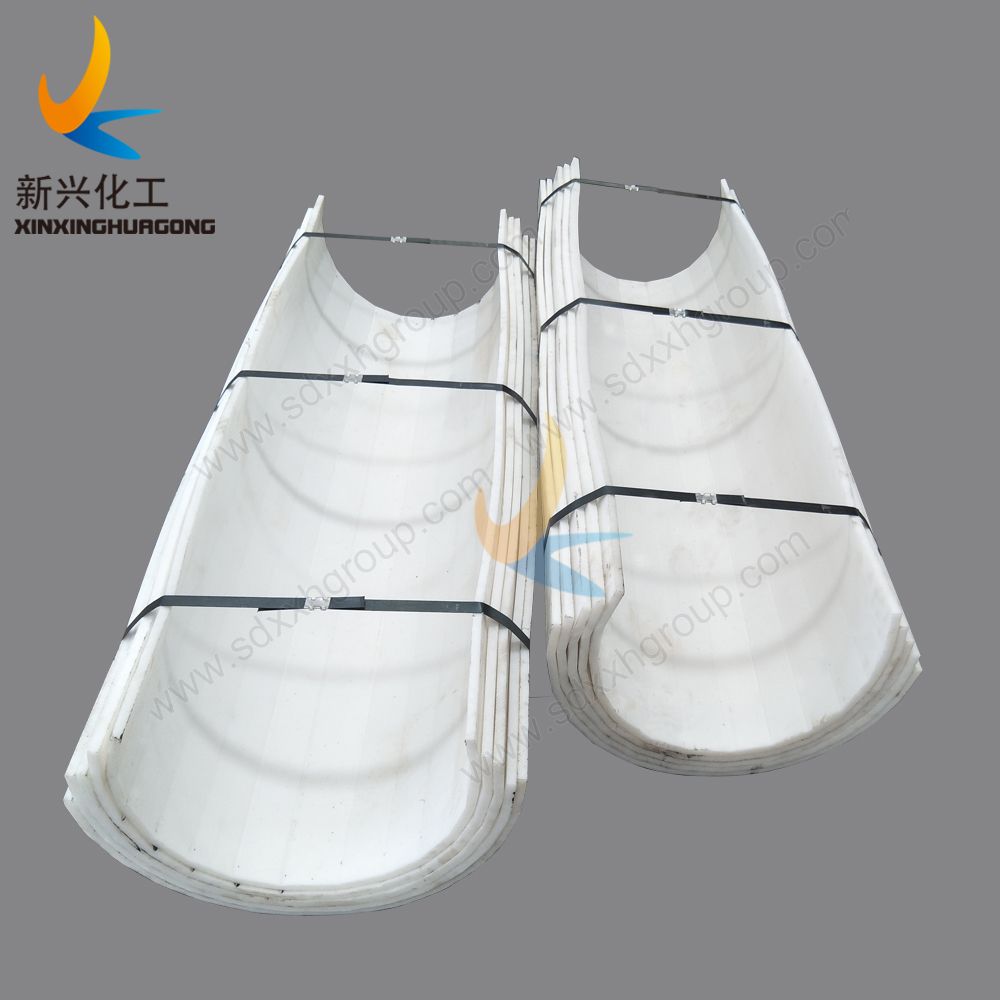

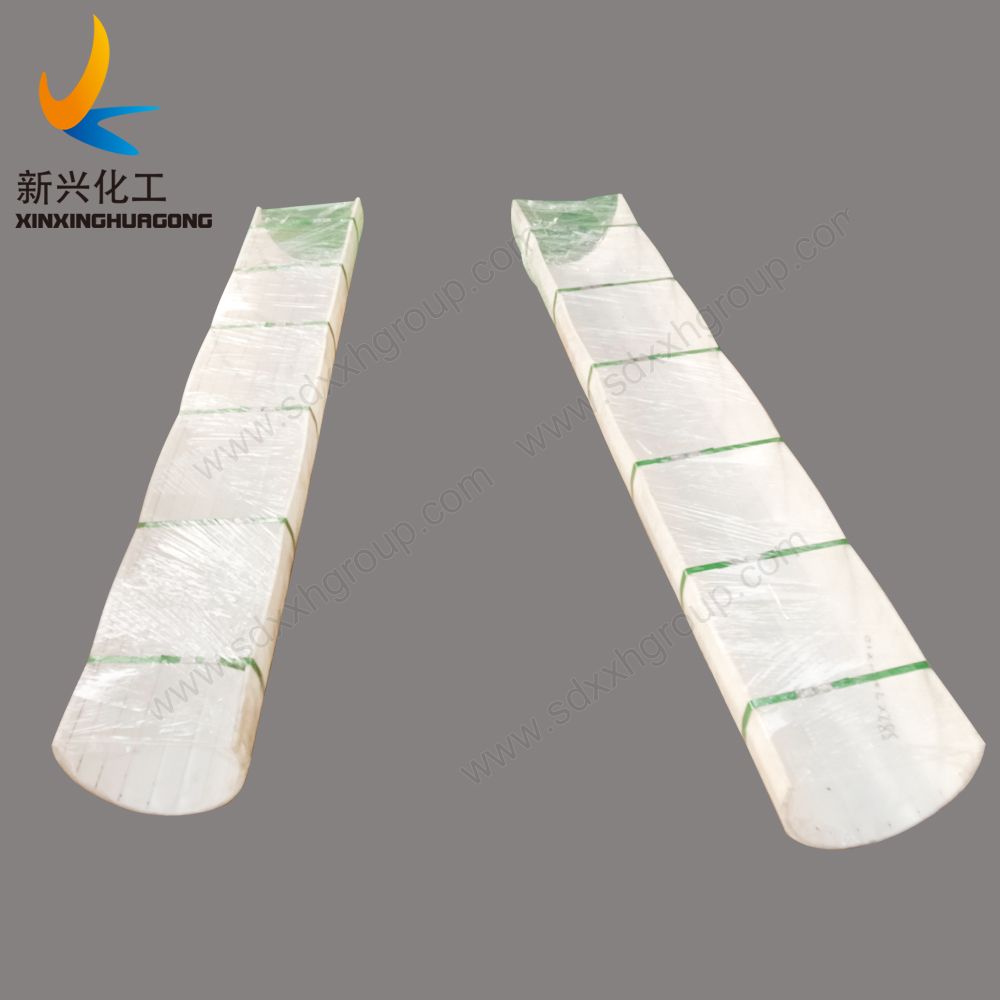

abrasion warning UHMWPE liner for shaftless screw conveyor

1. Abrasion resistance at the top in plastics, 4 times higher than nylon 66 and PTFE, 6 times higher than carbon steel;

2. The impact strength ranks first among plastics, which is 2 times of PC and 5 times of ABS, and can keep high toughness at liquid nitrogen temperature (-196)

3. Its self-lubrication is approach to that of PTFE, and the coefficient of friction is only 0.07-0.11

4. The impact absorption value is the highest among all plastics, and the sound attenuation effect is very good

5.  High chemical stability, in a certain temperature and concentration range can withstand the action of various corrosive media and organic media

6. Strong anti-adhesion ability, second only to PTFE;                                                                                                                                                                          7. Completely hygienic and non-toxic, can be used to contact food and medicine

8. Excellent corrosion resistance, low friction coefficient, small specific gravity, good high energy radiation resistance

 外直径φ200-1500mm     厚度5mm-20mm    长度700-2500mm

External diameter: φ200-1500mm thickness: 5-20mm, length: 1000-2500mm

该范围内均可定制生产，半圆以上直边部分也可以定制生产

All size accept customization, include the flat edge above the half circle part

产品颜色：      多色均可生产，以白色 黑色为主

Color:  white, black, others also acceptable

私人定制：      双色折弯板 （提示衬板最薄层，以保护设备）

Private order: double color bending sheet( warning the thin layer to protect the equipment)

应用范围：     无轴螺旋输送机

Application: shaftless screw conveyor
