UHMWPE Wear Liners are made from a premium Ultra High Molecular Weight Polyethylene plastic and will display good resistance to fine particle and sliding abrasion.
UHMWPE has a very low friction coefficient which results in excellent anti-stick properties which increases material flow and reduces the build-up of sticky materials.
UHMWPE is designed to be installed by mechanical fastening. It can be supplied as full sheets or cut liners as a custom engineered wear protection plastic lining system for your equipment.
UHMWPE lining plate
Black wear Resistant Self-Lubrication Polyethylene Uhmwpe Plastic Truck Bed Liner
Black wear Resistant Self-Lubrication Polyethylene Uhmwpe Plastic Truck Bed Liner
Black wear Resistant Self-Lubrication Polyethylene Uhmwpe Plastic Truck Bed Liner
Black wear Resistant Self-Lubrication Polyethylene Uhmwpe Plastic Truck Bed Liner
Black wear Resistant Self-Lubrication Polyethylene Uhmwpe Plastic Truck Bed Liner
Application of UHMWPE lining plate
UHMWPE Truck Bed Liner / Coal Bunker UHMWPE Liner UHMWPE Truck Bed Liner / Coal Bunker UHMWPE Liner
UHMWPE Wear Liners have been designed primarily for use as a flow promotion plastic lining system.
They are installed into equipment to reduce material and to protect steel surfaces from abrasion.
They are predominantly used in the Mining, Quarrying and Mineral processing industries, typically on the following equipment:
Chutes
Screens

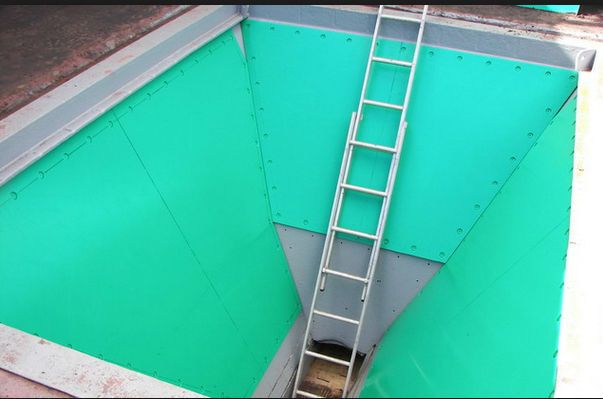

Hoppers and bins
Feeders
Stacker / Reclaimer buckets
Conveyor Hoods

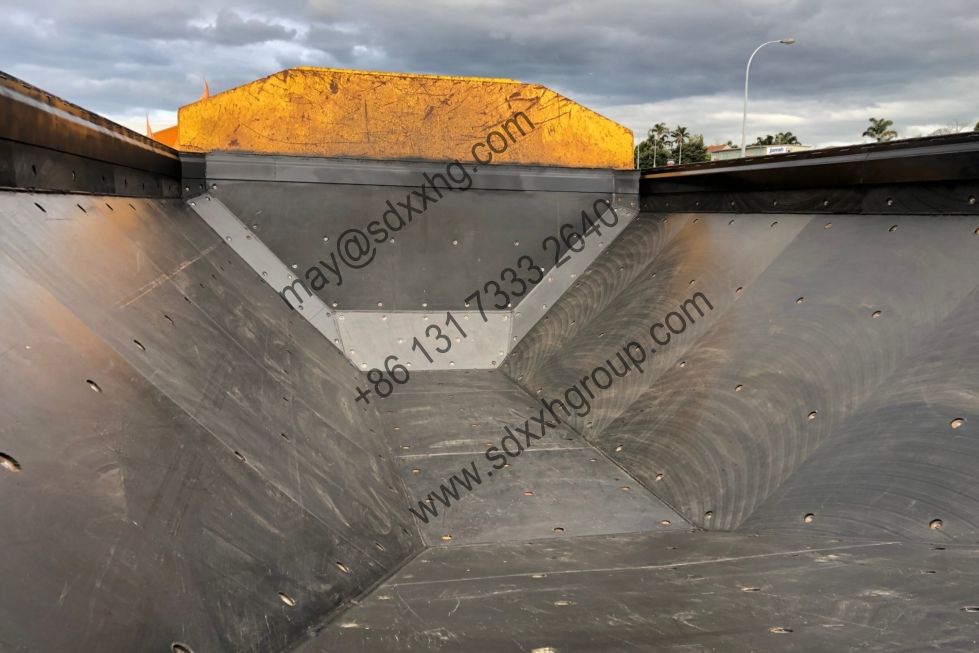

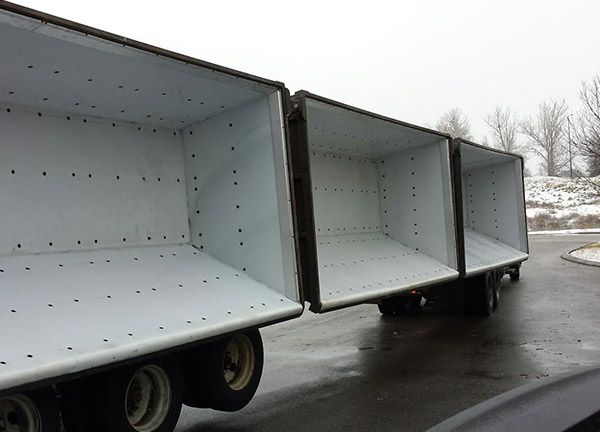

Dump truck bodies
UHMWPE can also be used for any application which requires an anti-stick and abrasion resistant plastic.
Technical data sheet of UHMWPE sheet
| Material | UHMWPE |
| Color | blue/ black/green, upon customers |
| Specific Gravity | 0.93 |
| Hardness | 61° Shore D |
| Tensile Strength | 20 MPa (min) |
| Breaking Strength | 40 MPa (min) |
| Elongation @ Break | 350% |
| Temperature Range | -20°C to +80°C |

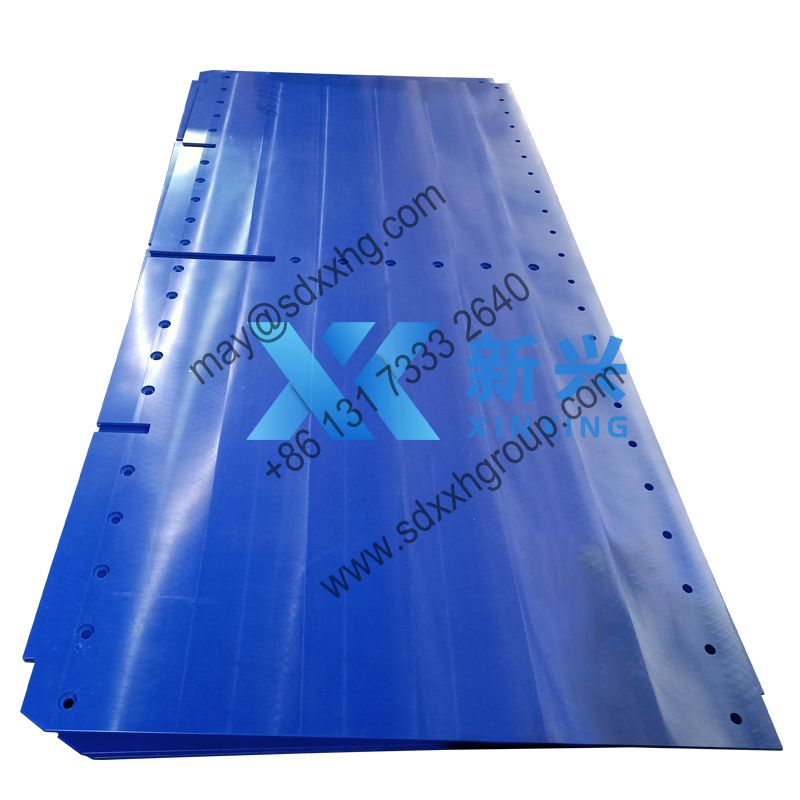

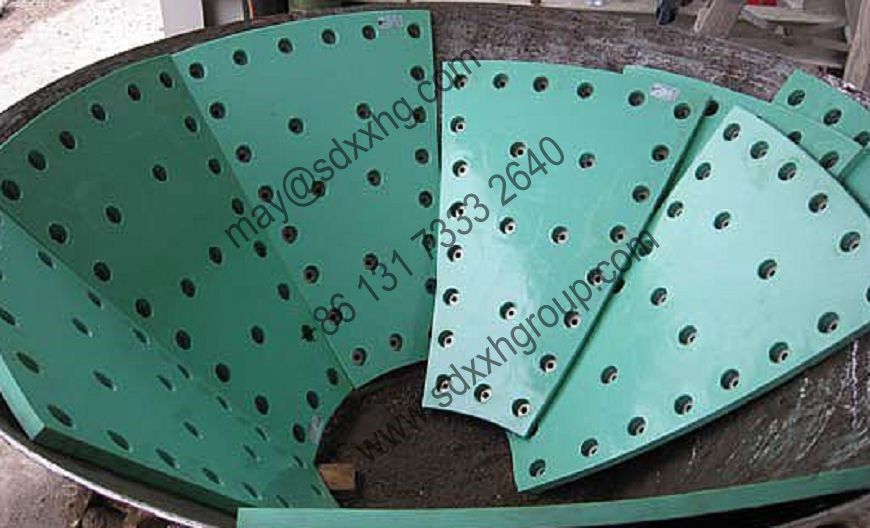

UHMWPE Wear Liners can also be custom cut as per specifications and drawings and supplied with pre-drilled counter-bored holes to be fastened with Bolts.
| Regular Size | WEIGHT (EACH) |
| UHMWPE Wear Liner Sheet 10mm x 1250mm x 3000mm | 36 kgs |
| UHMWPE Wear Liner Sheet 12mm x 1250mm x 3000mm | 45 kgs |
| UHMWPE Wear Liner Sheet 20mm x 1250mm x 3000mm | 76 kgs |
| UHMWPE Wear Liner Sheet 25mm x 1250mm x 3000mm | 95 kgs |
