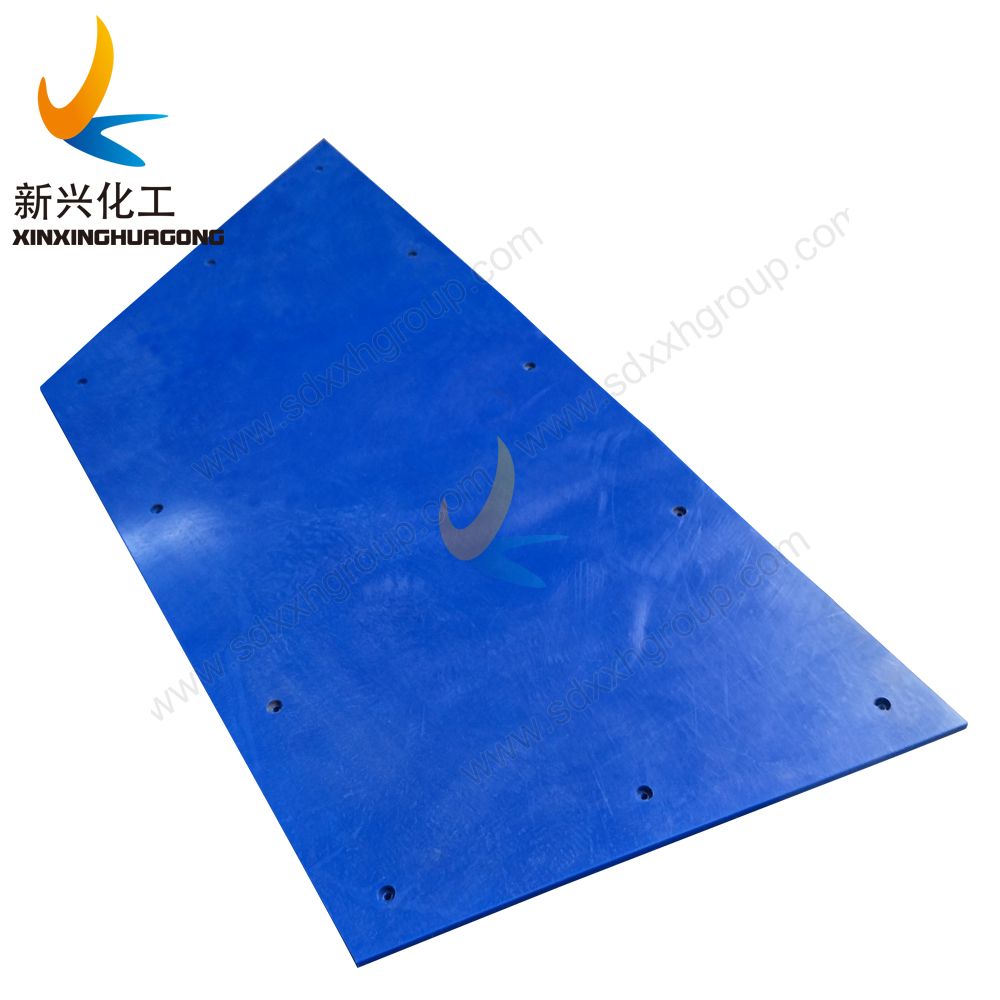

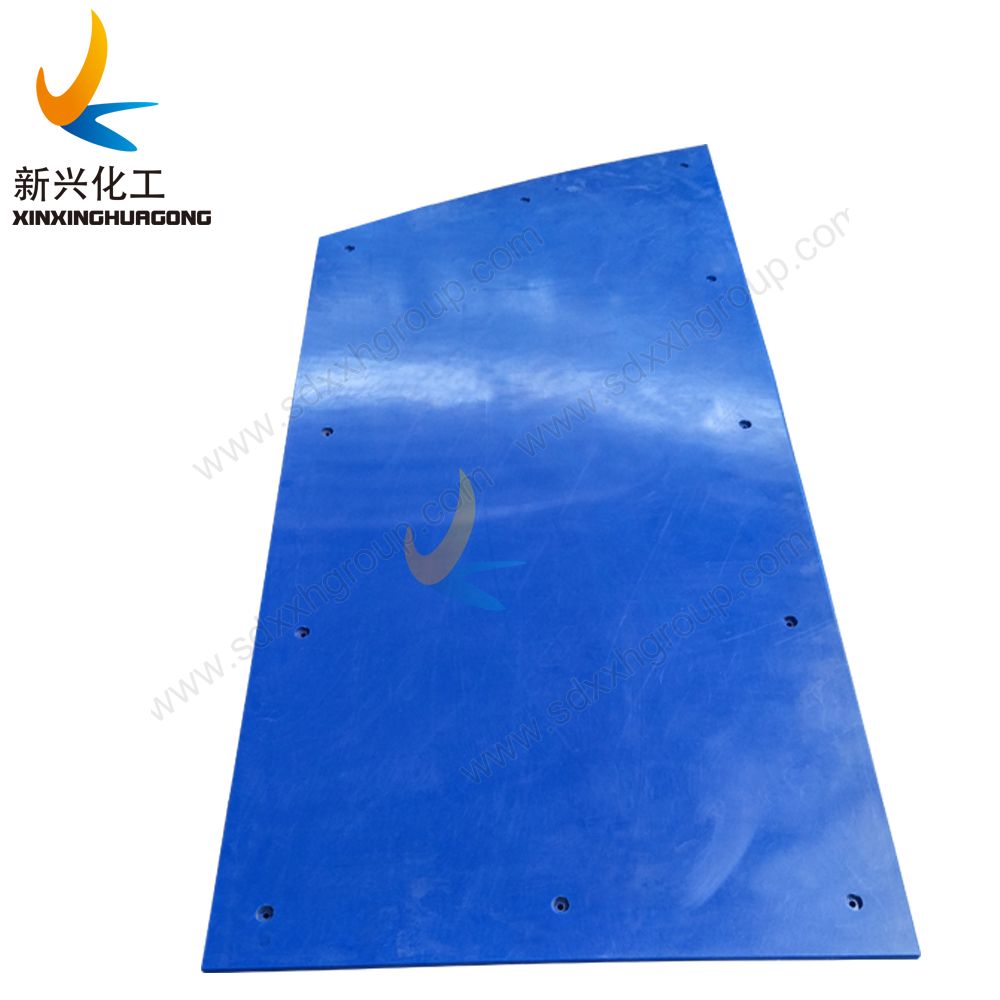

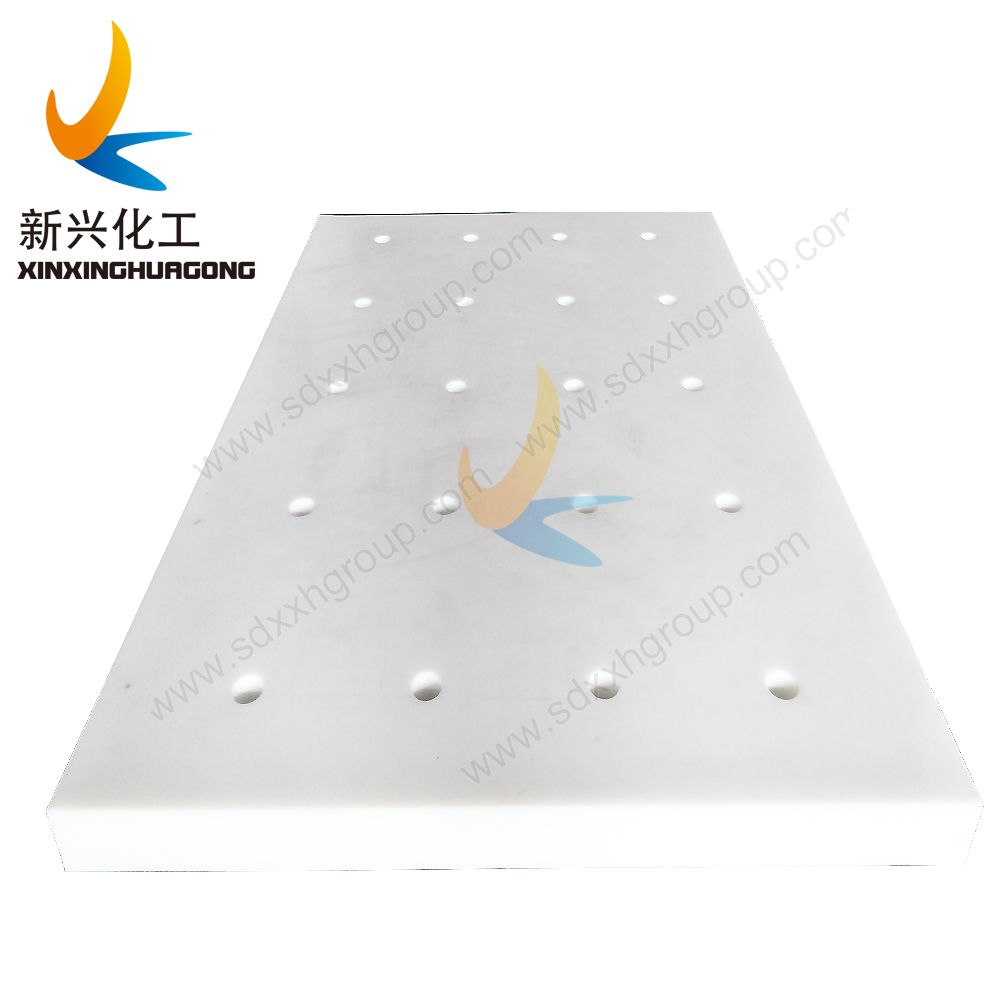

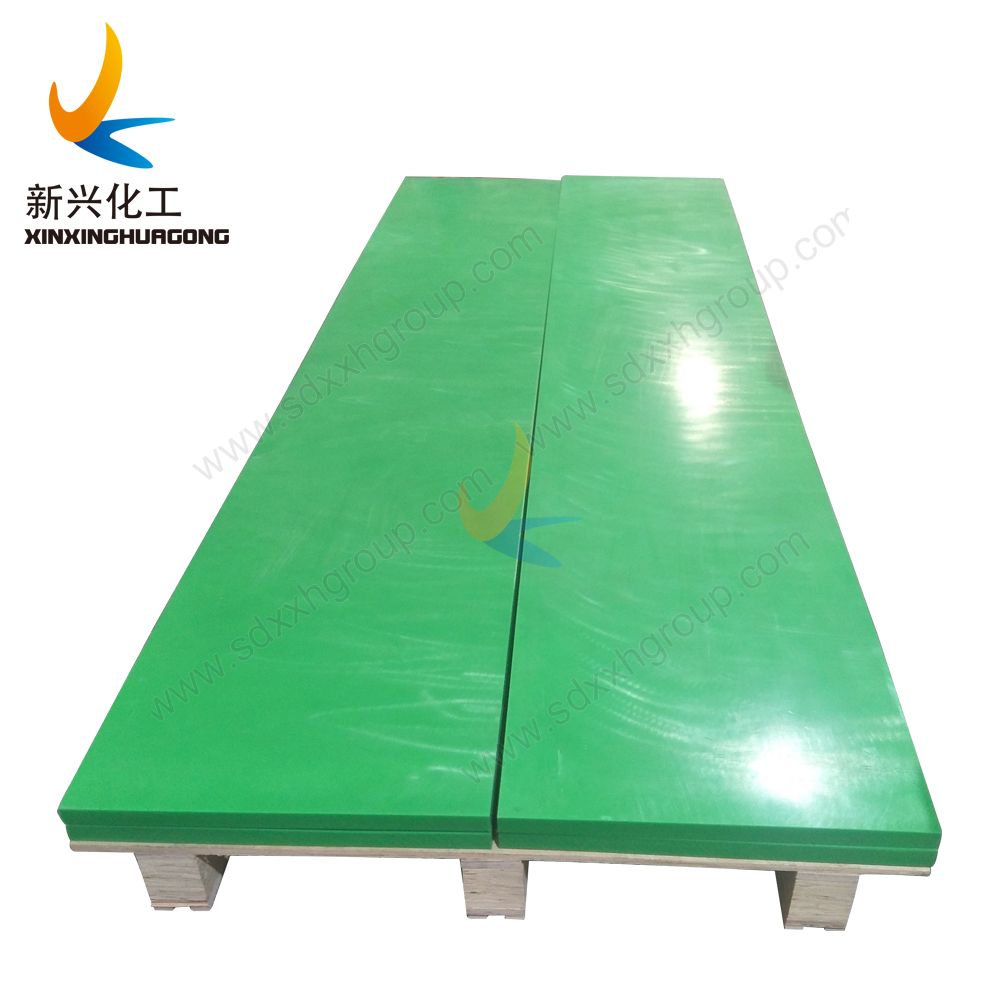

Chute sliding liner UHMWPE sheet

Xinxing Chemical from China, the professional UHMWPE liner manufacturer with nearly 30 years of experience, keeps advancing and improving products’performance. The UHMWPE liner plate possesses excellent performance, such as highly wear-ability, stronger anti-impact performance, better anti-corrosion performance and etc. Due to all performance above, we have the honor to serve thousands of customs at home and abroad.

Inquire Now Next Product

Customized UHMWPE abrasion resistant liner

Chute sliding liner UHMWPE sheet

Advantages and Features of UHMWPE sheet

As a new type of engineering plastic, UHMWPE sheet possesses multiple performance advantages:

Extraordinary wear-resistant,4~6 times higher than other plastic,6~9 times higher than steel, and 26 times higher than copper.

Highly impact strength, 10 times higher than PA6 and PP

Low friction coefficient (0.05~0.11), and capable of self lubrication

Unattractive to foreign material, and anti-sticking while sliding

Resistant to chemical corrosion

Parameter of UHMWPE liner sheet:

Items	Unit	Data	ASTM Test Method
Molecular Weight	billion	3~9	D2857
Specific Gravity	g/cm^3	0.935~1.0	D1505
Tensile Strength	MPa	40~45	D638
Elongation at break	%	300~400	D638
Impact Strength	kJ/m^2	≥140	D250
Rockwell Hardness	kJ/m^3	40~60	D747
Abrasion Loss	mg/1000 times	70	D1175
Distortion Temperature	℃	85	D648

Application of UHMWPE sheet

Application

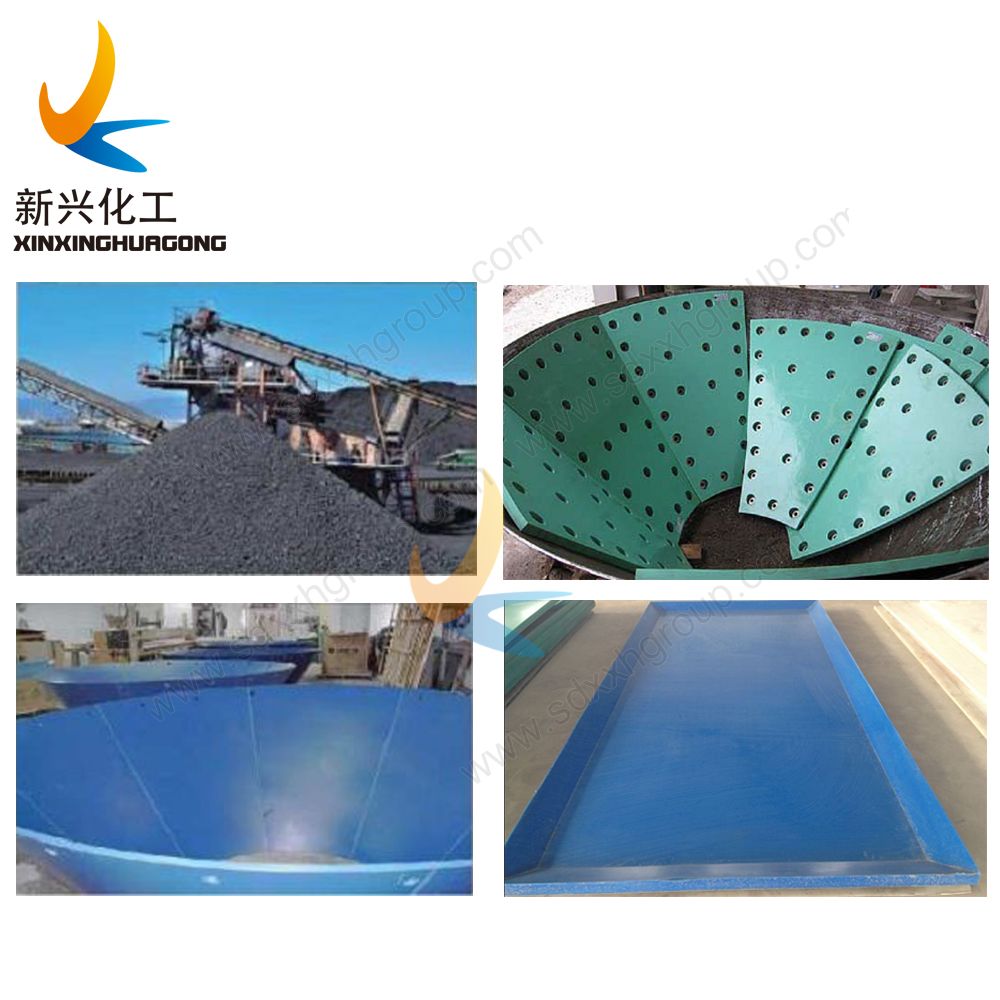

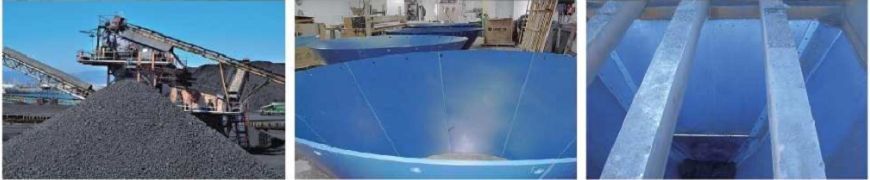

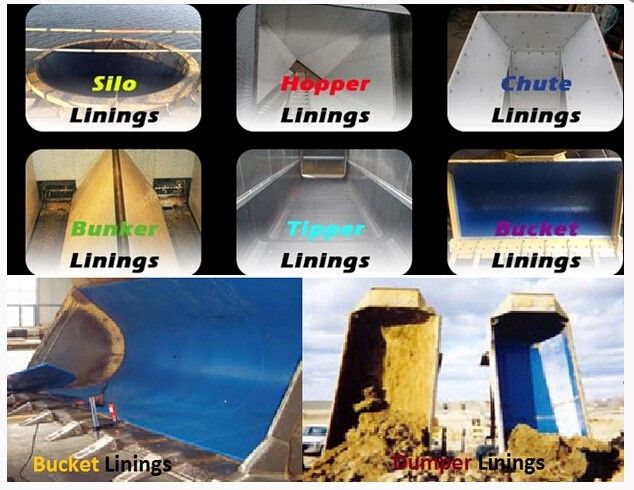

UHMWPE liner plate can be applied in bunker, stock bin, funnel, chute and etc. in the following industries: coal, metallurgy, steel, thermal power, cement, coking, glass, separation coal and etc. UHMWPE liner plate can solve the blocking and bonding during production, high-efficiency.

UHMWPE waterproof liner for bunker

Tags: UHMWPE abrasion resistant sheet, UHMWPE Liner sheet, water proof UHMWPE liner, non stick liner for hopper, Chute siding liner
