UHMWPE liner plate can be applied in bunker, stock bin, funnel, chute and etc. in the following industries: coal, metallurgy, steel, thermal power, cement, coking, glass, separation coal and etc. UHMWPE liner plate can solve the blocking and bonding during production, high-efficiency.

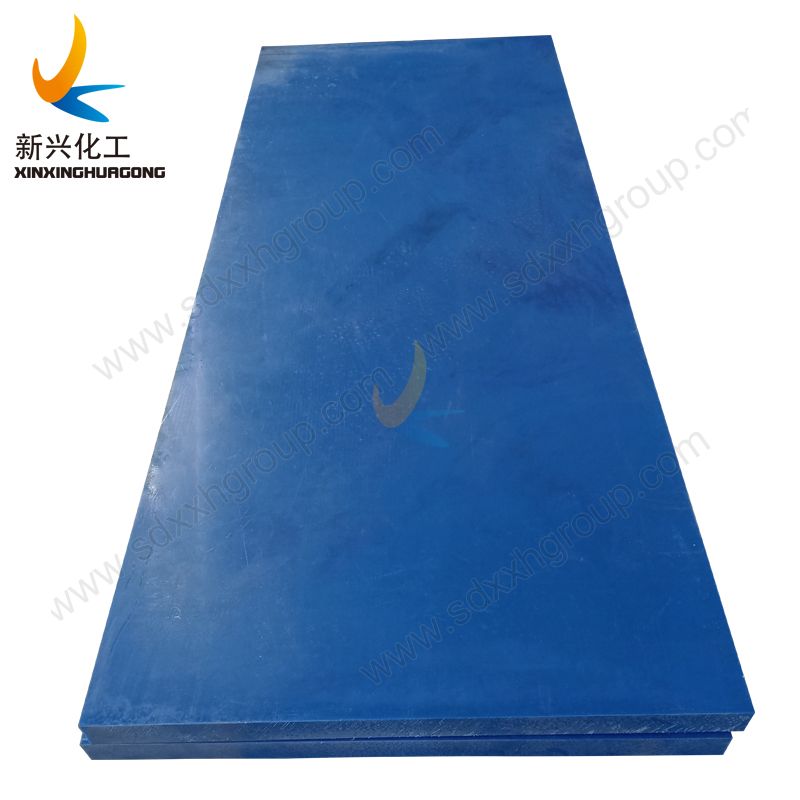

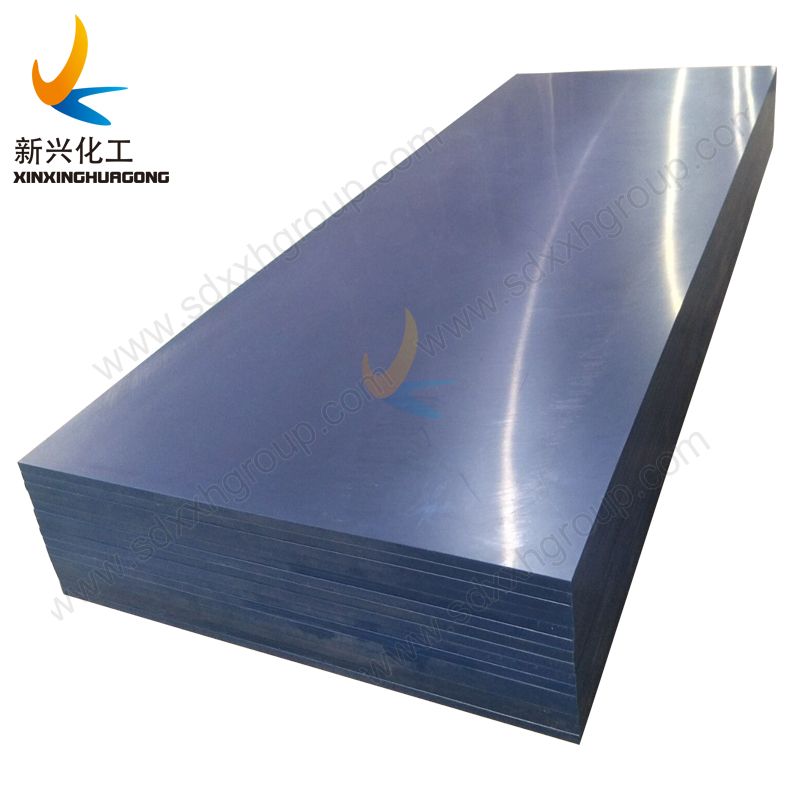

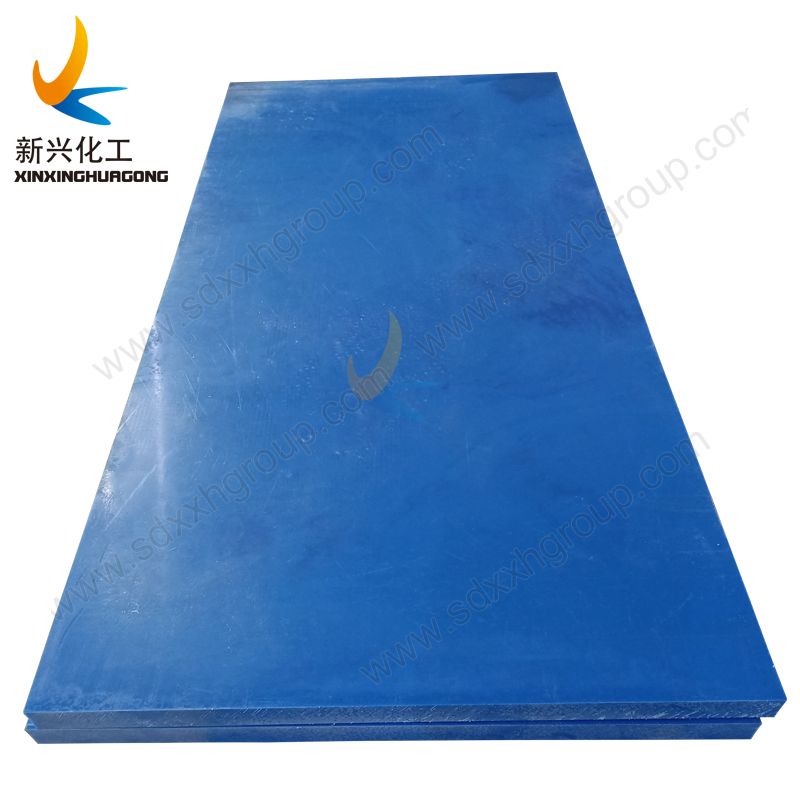

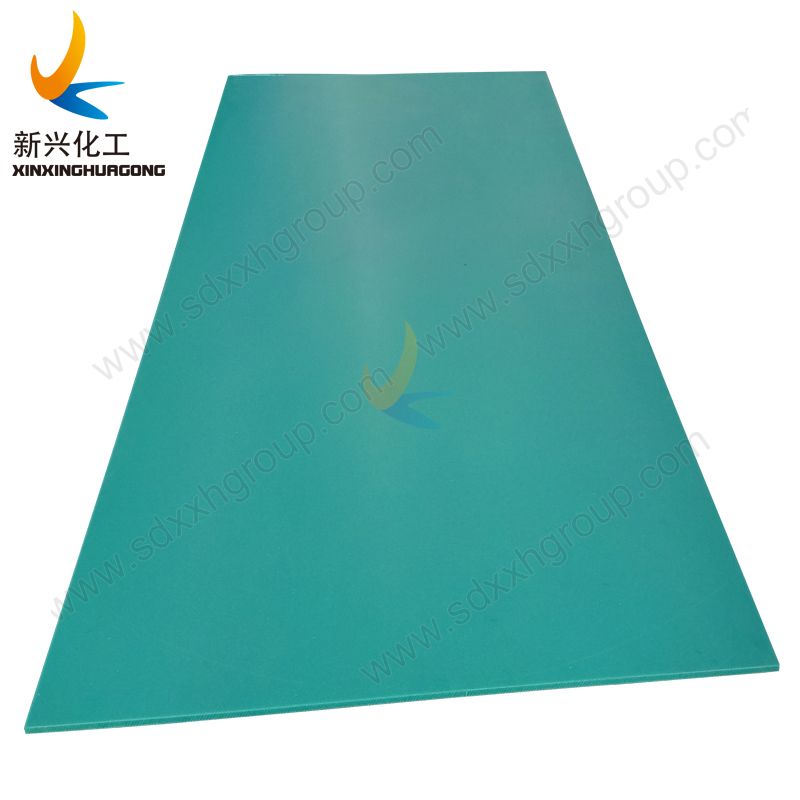

Introduction of wear resistant UHMWPE lining plate
UHMWPE sheets (Ultra high Molecular Weight Polyethylene) is a thermoplastic engineering plastic with the average molecular weight more than 6.0 million. (PE only has the molecular weight between twenty to two hundred thousand.) This kind of material with five top performance of high-wear-resistance, good-chemical resistance, low-temperature resistance, self-lubrication and high-impact resistance, which is regarded as a surprised engineering plastic of excellent comprehensive capacity and competitive price.
1.Abrasive resistance which always have in thermoelectricity polymer.
2.Best shock resistance even in low temperature.
3.Low frictional factor, and well sliding bearing material.
4.Lubricity (no caking, in adhesion).
5.Best chemical corrosion resistance and stress craze resistance.
6.Excellent machinery process ability.
7.Lowest water absorption (<0.01%).
8.Paragon electric insulativity and anti-static behavior.
9. Nice high energy radioactive resistance.
10.Density is lower than other thermoplastics (< 1g/m3).
11.Long using temperature range: -269°C--90°C.
1. Very high-wear resistance, seven times wear resistance than steel, four times than PTFE
2. Very high anti-impact resistance, two times impact resistance than PC, five times than ABS.
3. Good self-lubrication, the same as PTFE, better than steel and brass appended lubricating oil.
4. Good anticorrosion resistance, it has very stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Very high inadhesion resistance, the surface of product hardly affixes other material.
6. Very high-impact resistance, ten times impact resistance than PA66, eight times than PTFE.
7. Good low temperature resistance, in liquefied nitrogen (- 196), it still has the prolongation. few other materials can reach to this performance.
8. Non-toxic and clean property, UHMW-PE, which is the material that meets food processing and handling requirement permit to apply in food and medicine fields.

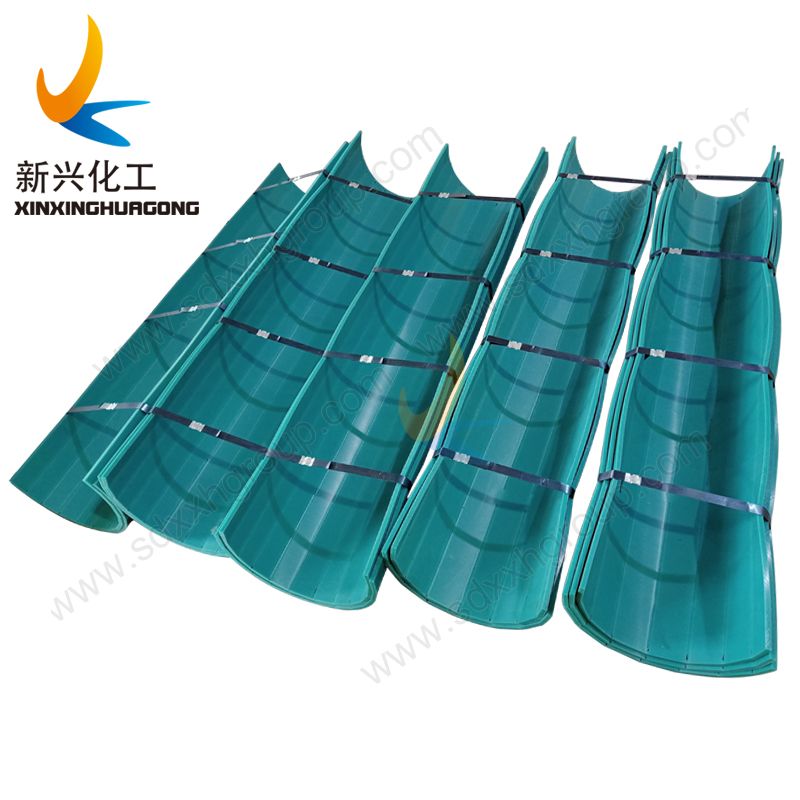

Application of UHMWPE wear plates
Wear resistance, impact resistance self-lubricating, Corrosion resisting, Impact-energy absorption, Low temperature resistance, Safe and non-toxic, Hard conglutination, Low water Absorption, High density

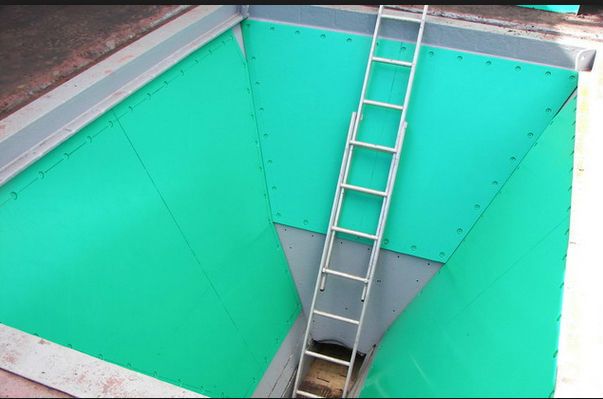

1,Used as lining board for bunker,chute,mixer,warehouse etc self-lubrication and wear resisting needed areas
2,Made into block,dock fender board etc special purpose and special shaped products. 3,Made into all kinds of mechanical parts according to drawings under the help of lathe,mill machine and mould.
4,Due to the excellent property of high intensity and impact resisting,UHMWPE boards have been used in military include pallet for bulletproof jacket and bulletproof shield ,Protection level III and IV .
5,Other fields include Ice rink,water tank etc.
