Composite plastic crane foot support mat/plate for construction

WHY CHOOSE XINXING Crane Foot pads?

XINXING Outrigger Pads are very stront through the pads tested. Our Outrigger Pads manufacture their own outrigger pads and are known for the portability, durability and great value.

COMMON OUTRIGGER PAD USES

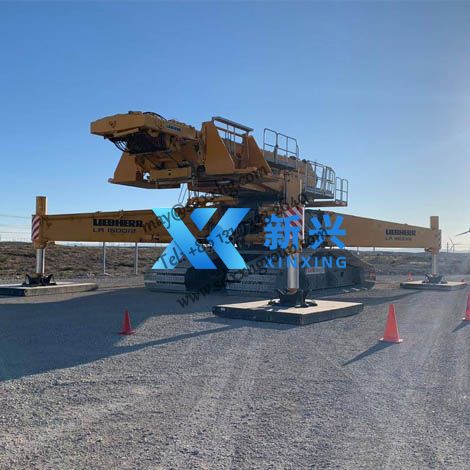

Outrigger Pads are used on Fire Trucks, Utility Trucks, Tree Trimmers, Recreation Vehicles (RV’s) Concrete Pumps, Cranes and Any Type of Aerial Equipment.

Inquire Now

common feature of UHMWPE crane outrigger pads

Engineered: Logo stamped drawings are available upon request. Rubber attached surface also available according to request.

One/Two-Point Pick Design: one/Two embedded lifting handles (or nylon rope with rubber sleeve handles) at each end of the mats allows for a single strap to be used to pick up all mats as a stack or individually. No shackles or hooks required!

Specifications of UHMWPE crane jacking pads

Shapes of uhmwpe jack outrigger pad:

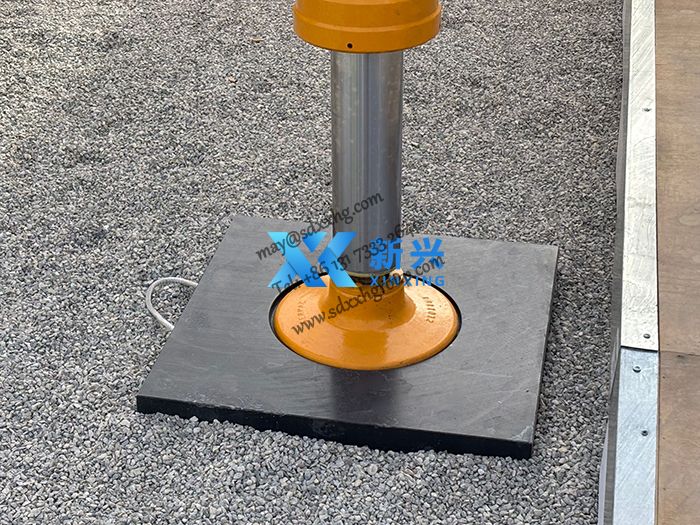

Square shape

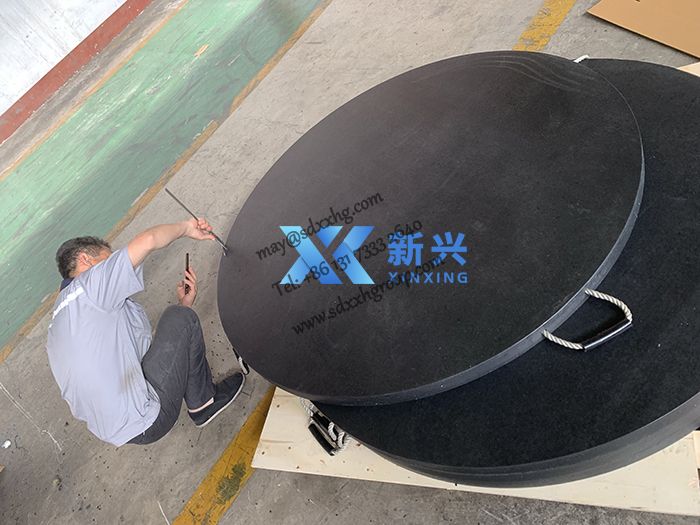

Round shape

Shandong Xinxing support OEM & ODM service, welcome to customize as client demand.

Sizes(mm)	Load Capacity(tonnes)	Weight(kgs)	Load Spread Area(㎡)
40040025	20	4	0.16
45045025	25	5	0.20
50050025	30	6.25	0.25
60060025	35	9	0.36
76076025	38	14.44	0.58

Diam.650*60	25	19.9	0.33
Diam.800*40	20	20	0.5
Diam.800*50	25	25.1	0.5
Diam.900*60	40	38.2	0.64
Diam.1000*50	40	39.3	0.78
