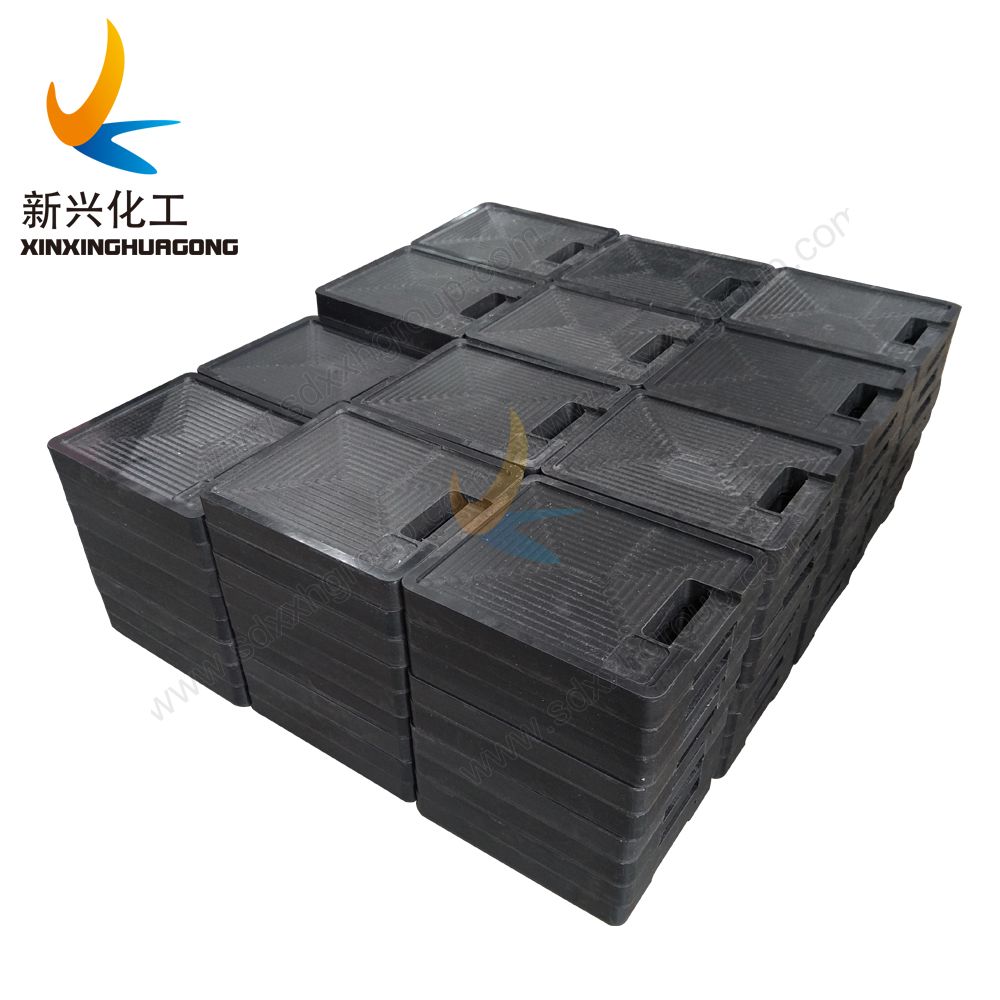

UHMWPE handled Crane stabilizer outrigger pads

UHWMPE HDPE PE plastic crane foot support mat/plate for construction

UHMWPE plastic crane foot support mat can be made up from ultrahigh molecular weight polyethylene(UHMWPE) material. UHMWPE jack outrigger pad is a good substitution for wood or steel crane pad, owning corrosion resistant, light weight and durable properties. UHMWPE jack outrigger pad is quite popular recent years.

Inquire Now Next Product

UHMWPE Crane outrigger pads/ Crane outrigger sleeper

UHMWPE handled Crane stabilizer outrigger pads

Heavy duty UHMWPE jack outrigger pad polyethylene crane outrigger pad

1.Characters of UHMWPE jack outrigger pad

High impact resistance

UV-protection, last long time

Chemical & Oil resistance

Light weight, labor-saving

Waterproof

Non-conductive

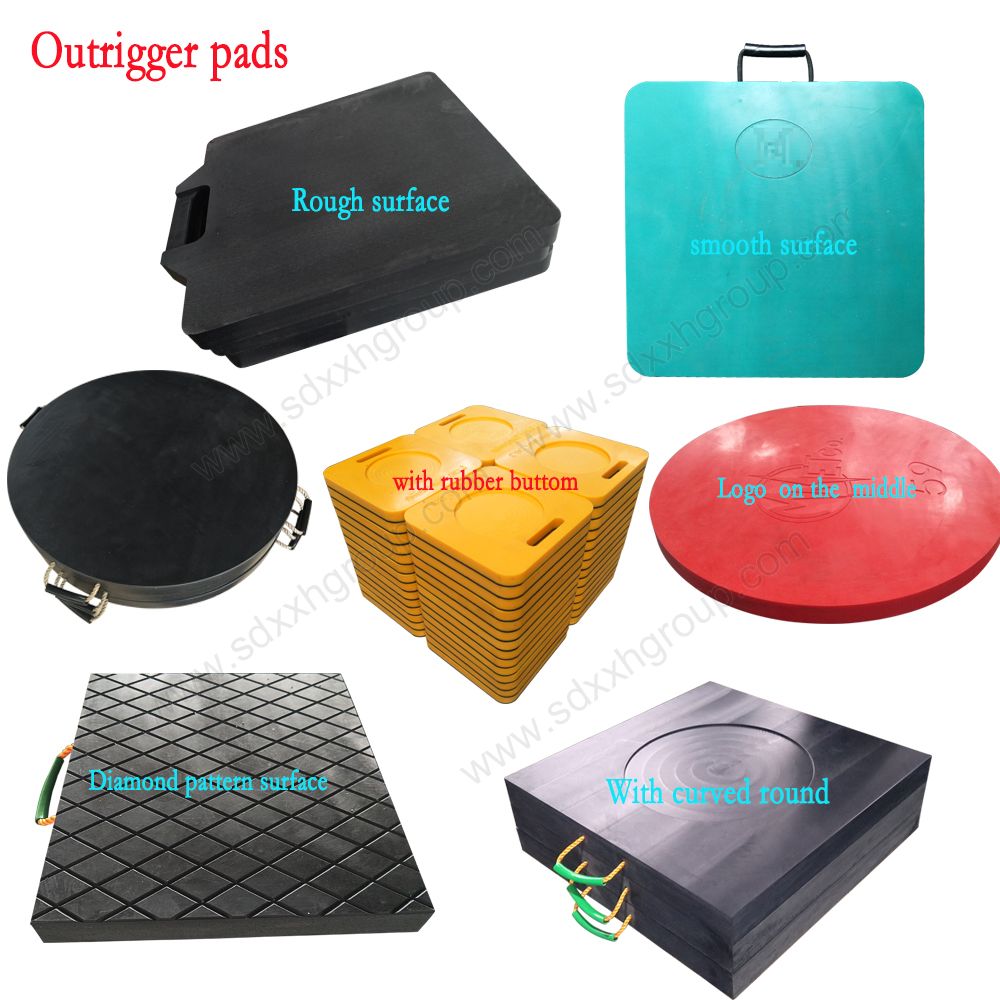

2.Designs and shapes of UHMWPE jack outrigger pad we can do

2.1 Designs of uhmwpe jack outrigger pad:

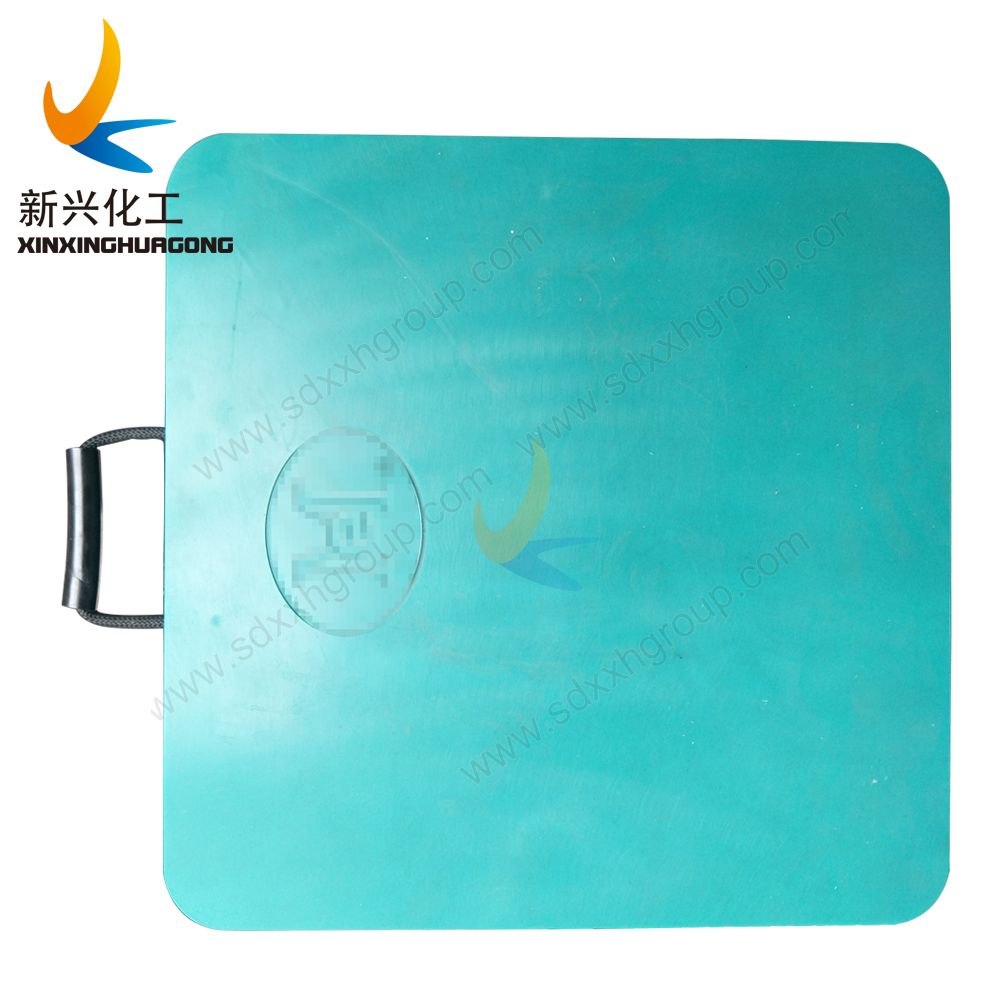

Standard smooth surface

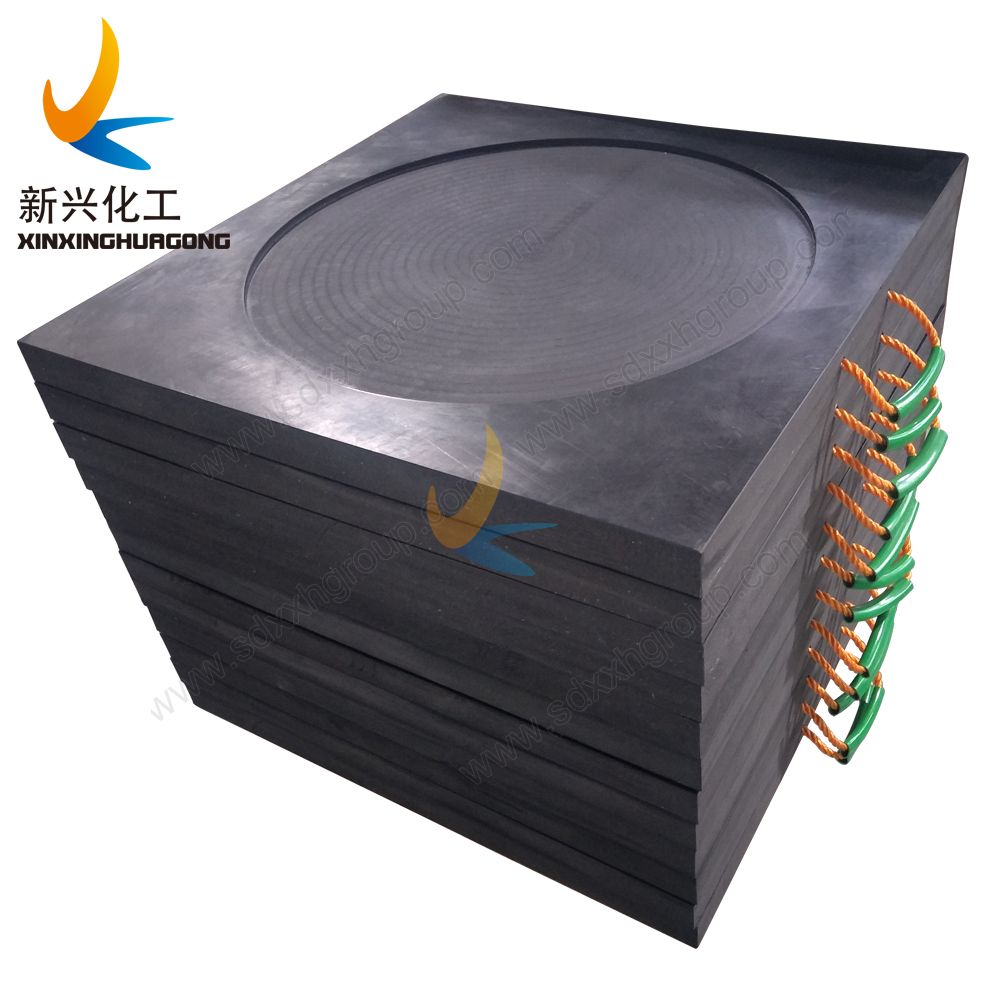

Circle in middle

Rhombus pattern

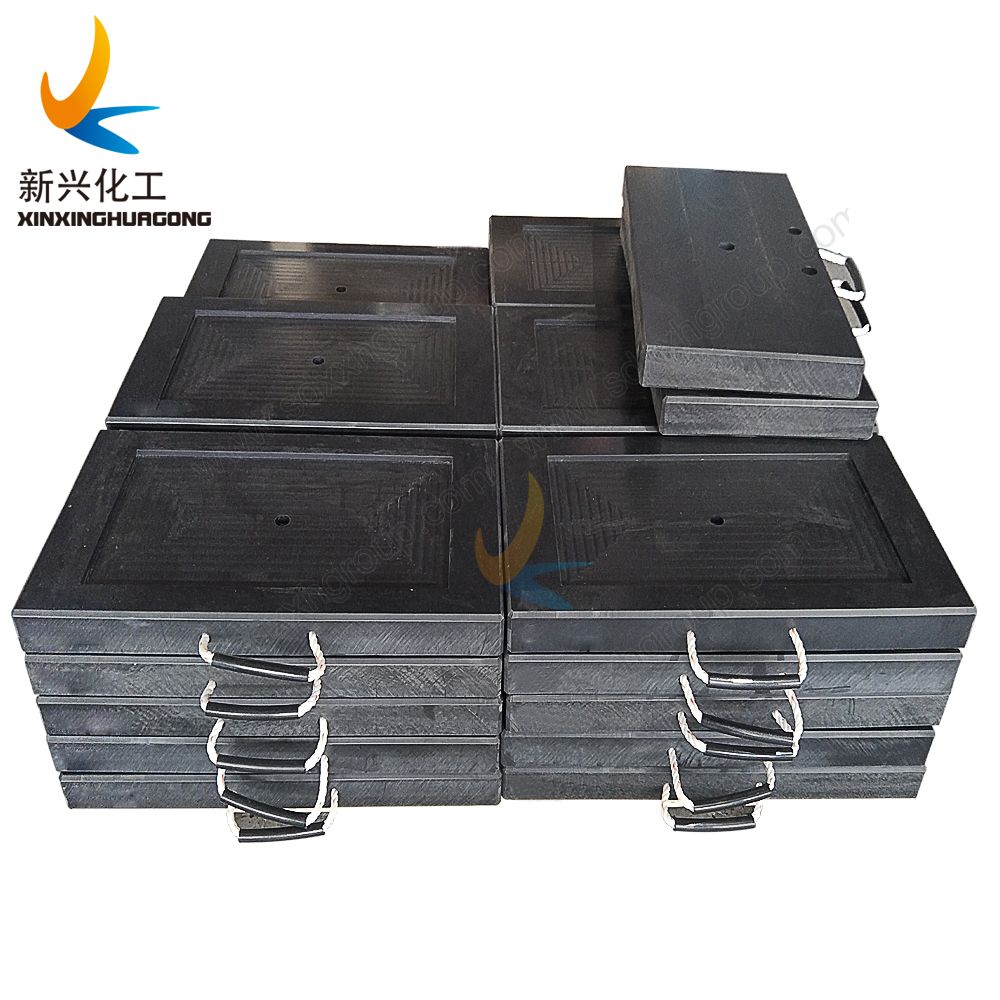

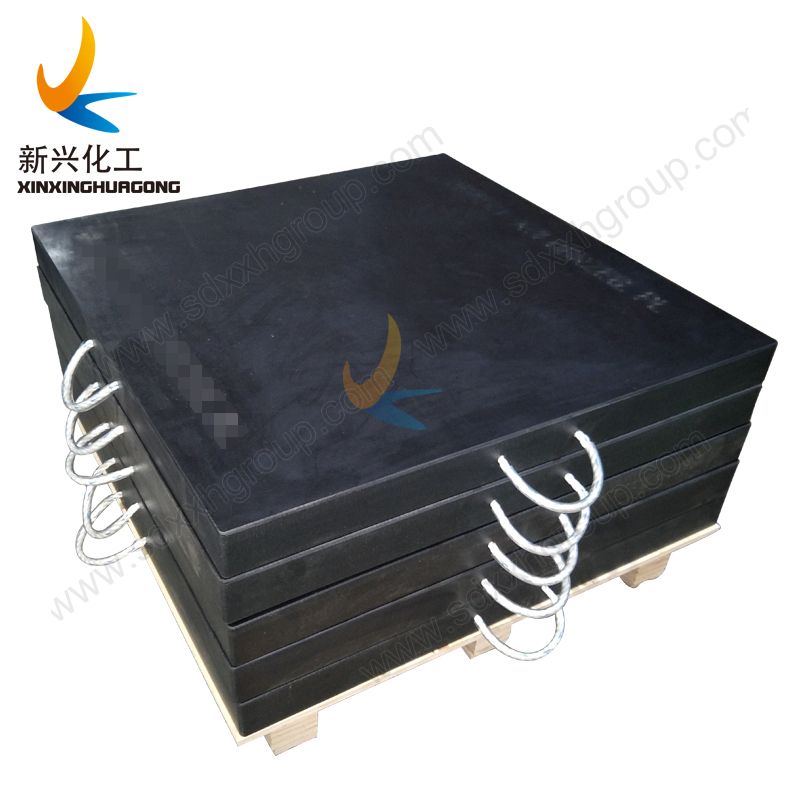

pad with nylon handle

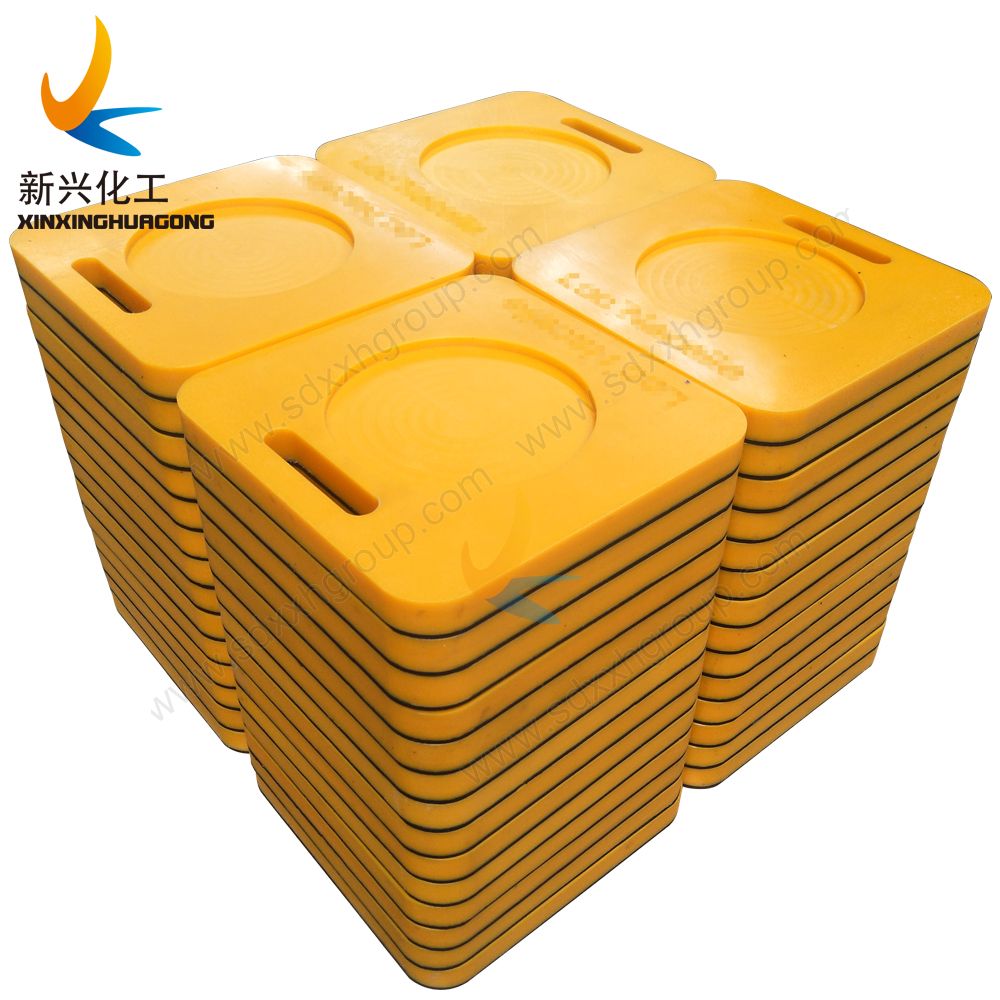

handle on top pad

2.2 Shapes of uhmwpe jack outrigger pad:

Square shape

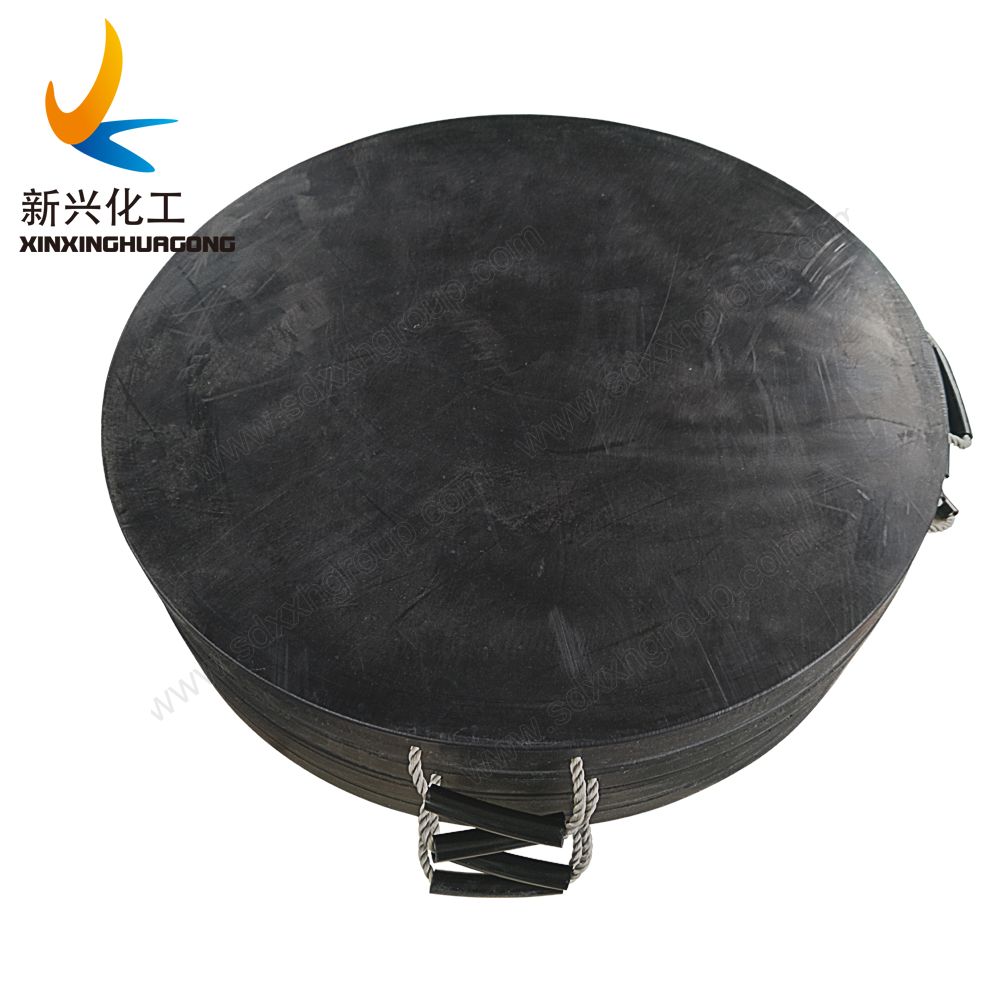

Round shape

Shandong Xinxing support OEM & ODM service, welcome to customize as client demand.

Product Parameters of UHMWPE crane outrigger pads

No.	Item	Unit	Testing Result
1	Impact Strength	KJ/m²	135
2	Bending Strength	Mpa	30
3	Tensile Strength	Mpa	26
4	Breaking Elongation	%	155
5	Water Absorption	%	0.005
6	Abrasion Loss	g	0.0015
7	Indentation Hardness of Ball	N/mm²	50
8	Density	g/cm³	0.98
9	Distortion Temperature	℃	85

Measurement

Sizes(mm)	Load Capacity(tonnes)	Weight(kgs)	Load Spread Area(㎡)
40040025	20	4	0.16
45045025	25	5	0.20
50050025	30	6.25	0.25
60060025	35	9	0.36
76076025	38	14.44	0.58
