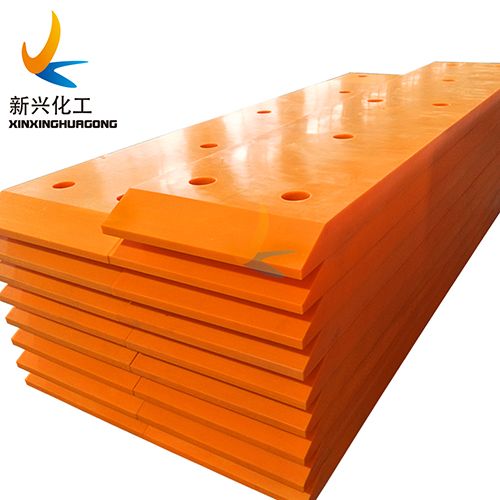

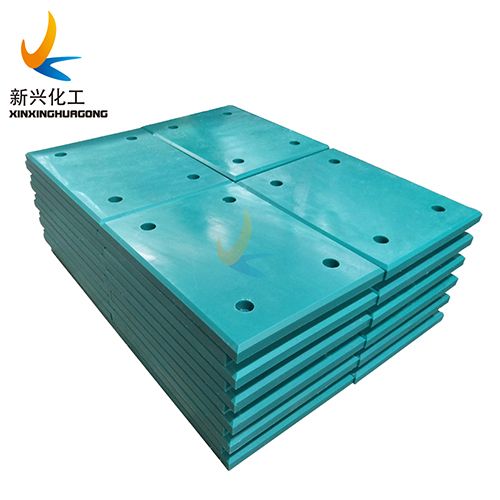

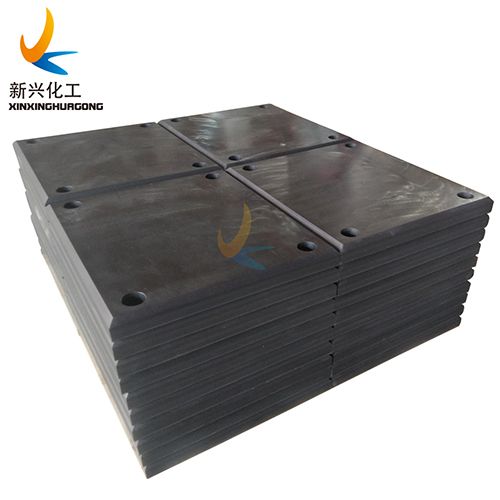

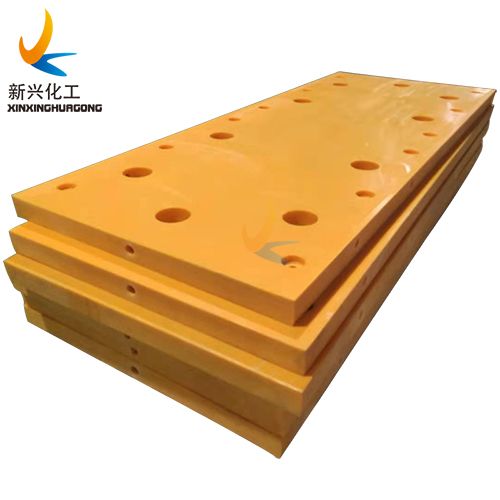

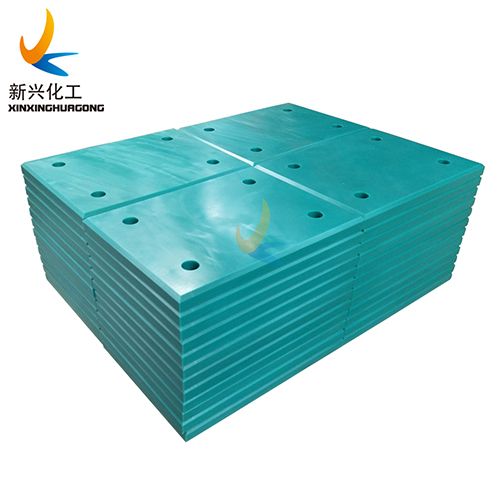

UHMWPE dock impact sliding boards

Marine Fenders are bumpers designed to absorb the kinetic energy of a vessel berthing against a jetty, quay or another vessel. They prevent damages to boats, vessels and berthing structures.

Well-designed docking fender systems absorb the ship's impact at docking, transforming ship berthing energies into reactions, transmitting to both the ships and berth structures.

There are different types and ranges of fenders, depending on many variables, including dimension and displacement of boats, maximum allowable stand-off, specific berthing structure, tidal variations and other conditions.

Ultra-high molecular weight polyethylene (UHMWPE) dock fender could avoid the impact damage between ships and dock.

On account of the high impact resistance performance, UHMWPE dock fender instead of the traditional steel ones is widely used in ports and docks at home and abroad.

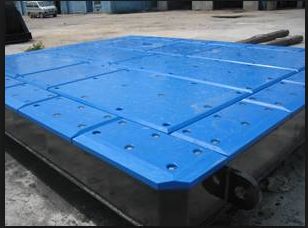

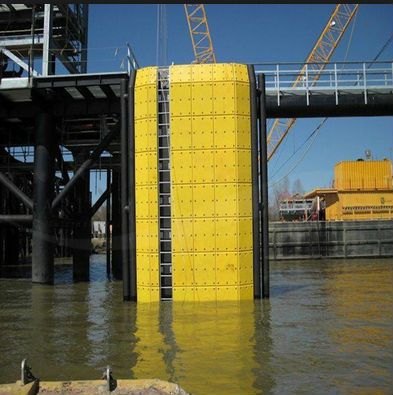

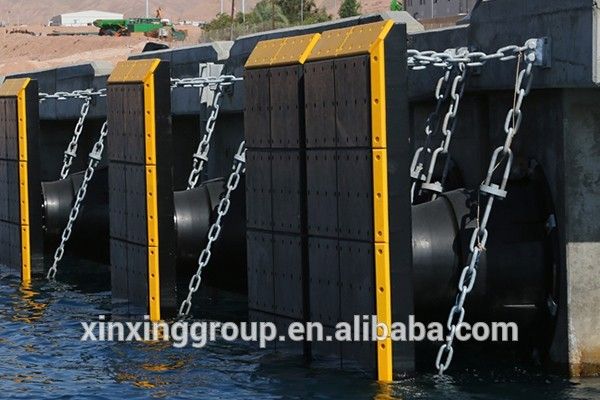

Dock fender Frontal panels

UHMWPE dock impact sliding boards

UHMWPE dock impact sliding boards

UHMWPE dock impact sliding boards

UHMWPE dock impact sliding boards

UHMWPE dock impact sliding boards

UHMWPE dock impact sliding boards

UHMWPE dock impact sliding boards

UHMWPE dock impact sliding boards

Excellent Advantages of Marine Fender Pads

*Light weight

*Superior high impact strength

*High abrasion resistance

*Low co-efficient of friction

*Shock and noise absorption

*Excellent self-lubrication

*Good chemical resistance

*Excellent UV stability-highly suited to the harsh climate

*Ozone resistant

*100% recyclable

*Non toxic

*Temperature resistant (-100ºC to 80ºC)

*No moisture absorption

*It could be supplied pre-drilled for easy installation and chamfered to avoid snagging

*Anti-aging

UHMWPE dock impact sliding boards

Specifications


PropertyUnitValue
Densityg/cm30.93-0.96
Average molecular weightg/mol3million- 10 million
Tensile strength (23°C in air)MPa22
Breaking strengthMPa42
Tensile strain at break%600
Charpy impact strength (notched)mJ/mm2No break
Ball indentation hardnessN/mm242
Shore hardness--65-70
Abrasion%70-80, steel = 100
Static Friction Coefficient-- ≤0.16
Kinetic Friction Coefficient-- ≤0.10
Water Absorption--NIL
Elongation at break at 23°C%≥300
Temperature Resistance°C-269 to +85
Melt Temperature°C130-140


Application fields of UHME-PE marine fender pads :

port wharf fender board ,

anti collided board ,

dock water pressure cushion .
