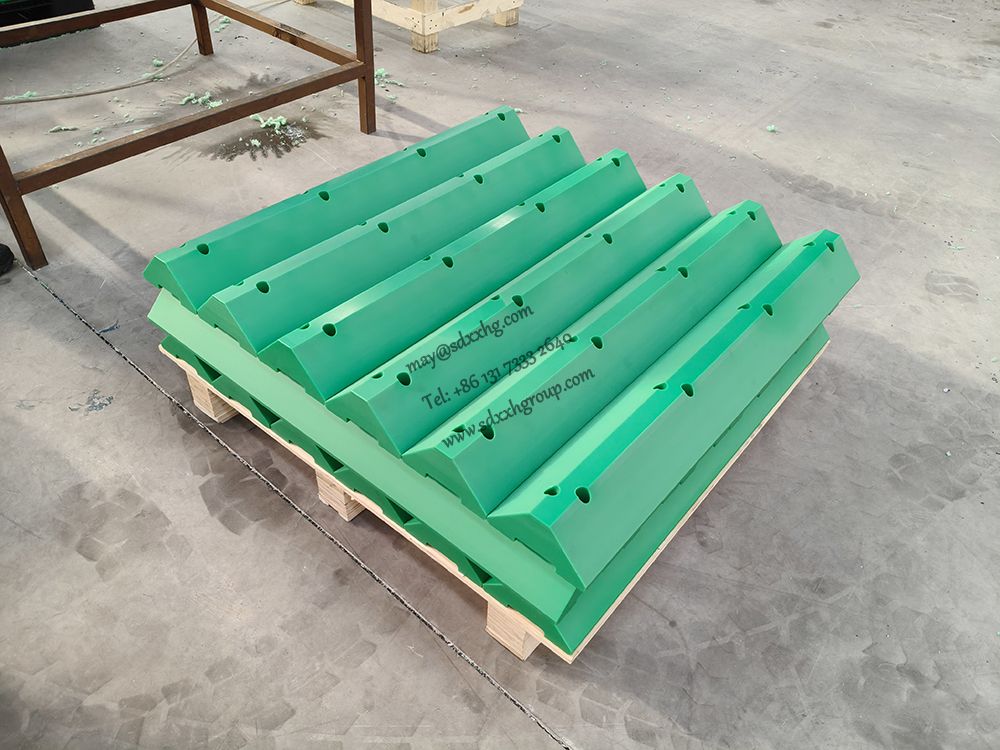

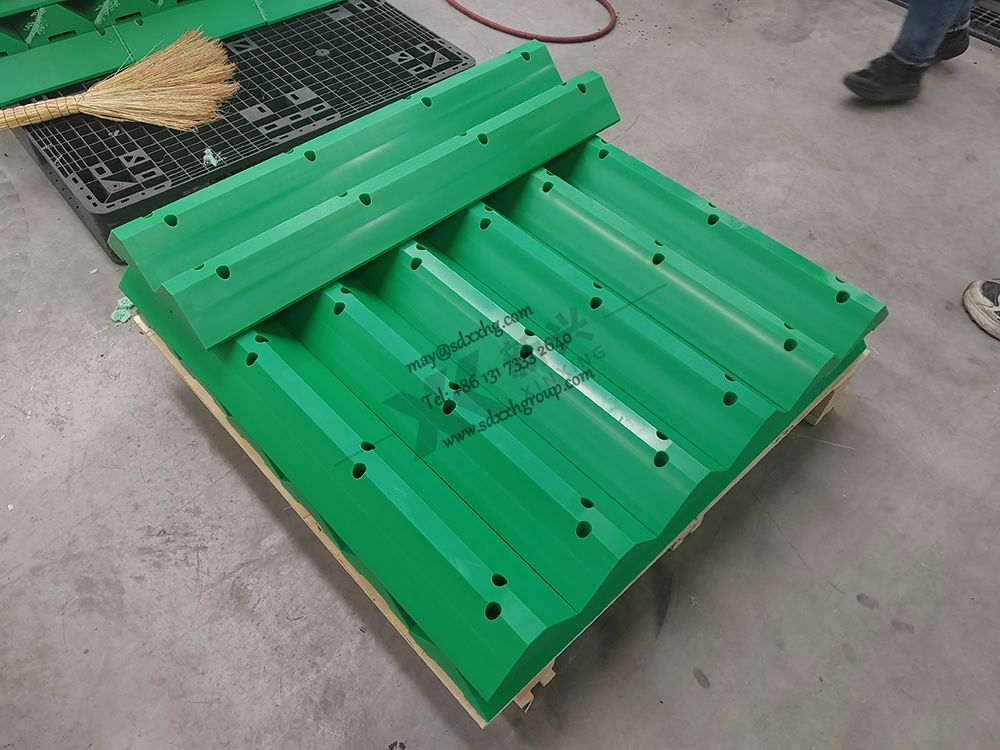

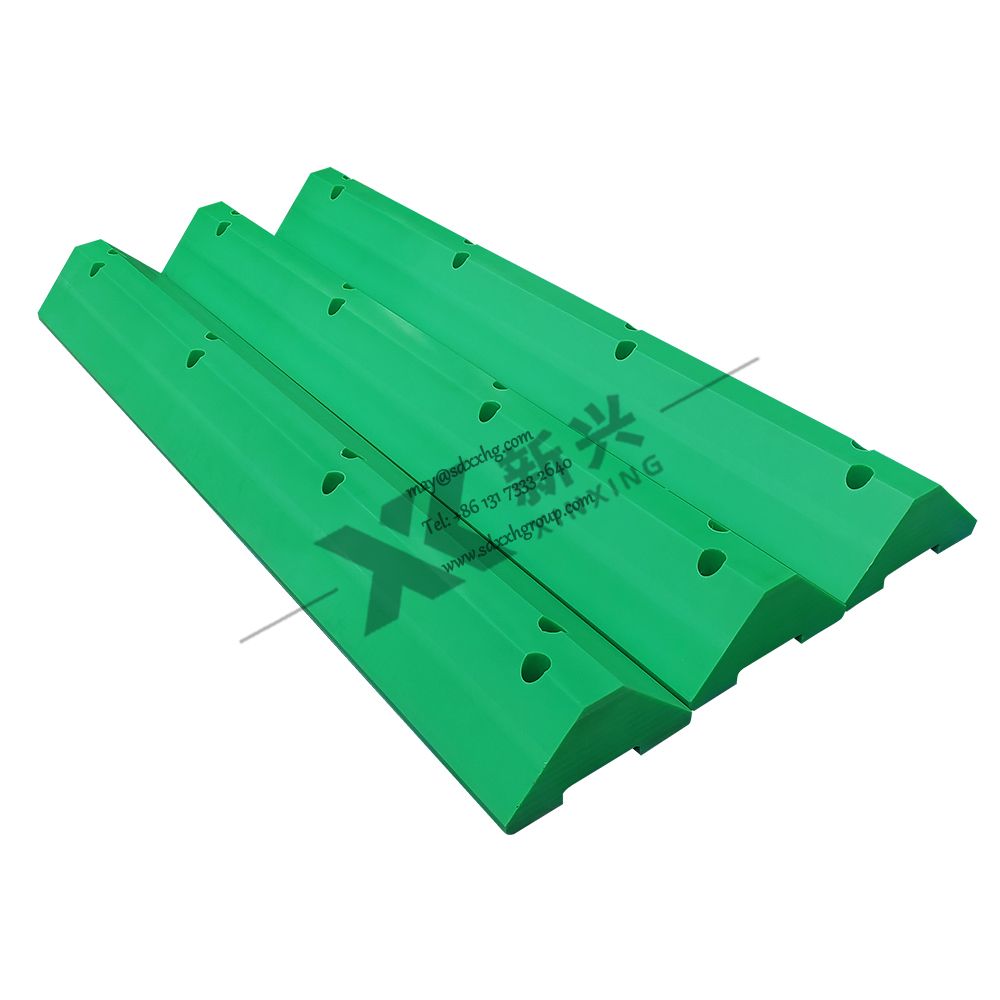

Customized UHMWPE angle bar

Reprocessed UHMW angles may be easily bolted to metal frameworks. UHMW resists corrosion and features a very low coefficient of friction as well as extremely low moisture absorption. It is self-lubricating and resistant to wear and abrasion, which extends the part life of mating parts.

UHMW angles are a fast and economical way to turn an abrasive metal component into a long wearing, non-marring component. UHMW angles are used in many conveying applications and can help reduce maintenance costs and energy consumption.

Inquire Now

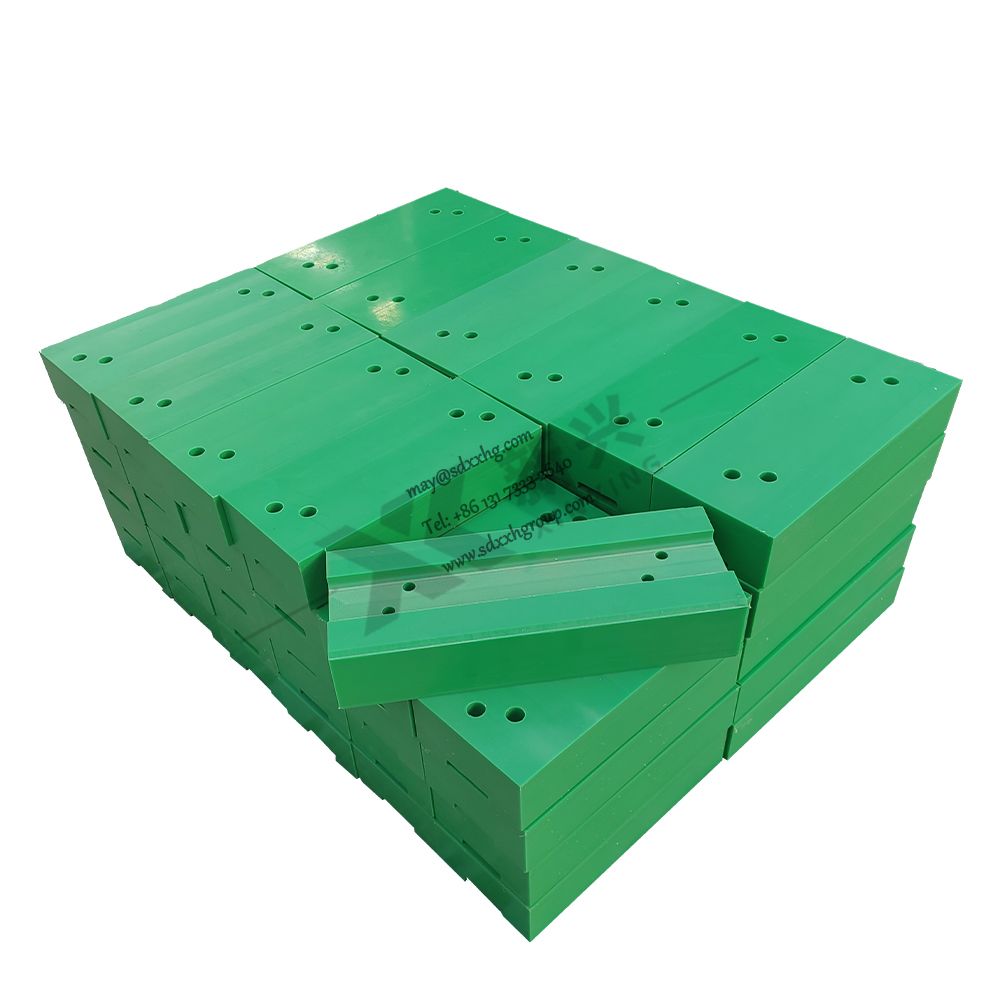

UHMWPE irregular customized blocks

Reprocessed UHMW
Available in 6000mm lengths
Highly resistant to corrosive chemicals (except oxidizing acids)
Extremely low moisture absorption
Very low coefficient of friction
Self-lubricating
Highly resistant to wear and abrasion
Easy to fabricate and machine with common shop and woodworking tools
Reduced maintenance costs and energy consumption
Extends equipment life

UHMWPE Specifications

Material: UHMW
Specific Gravity (g/cc): 0.94-.96
Water Absorption: 0.01%
Friction Coefficient: 0.13

Tensile Strength: 28MPA

Flexural Strength: 25Mpa

Elongation: 200% @ Break
Izod Impact Strength: NB (ASTM D256 Type A)
Hardness: 65 (Shore D)
Compressive Strength: 30Mpa
Continuous Operating Temp: 82℃

Melting Point: 135℃

UL94 Flammability: HB
