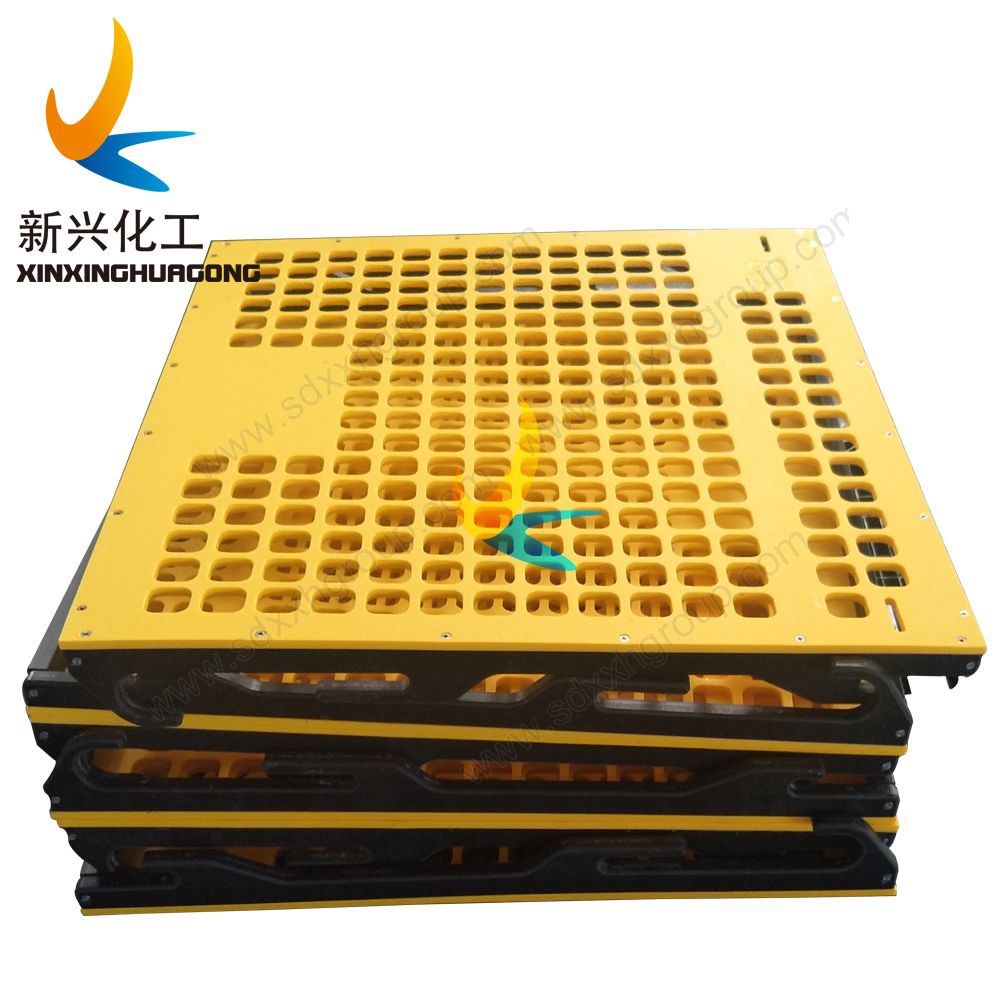

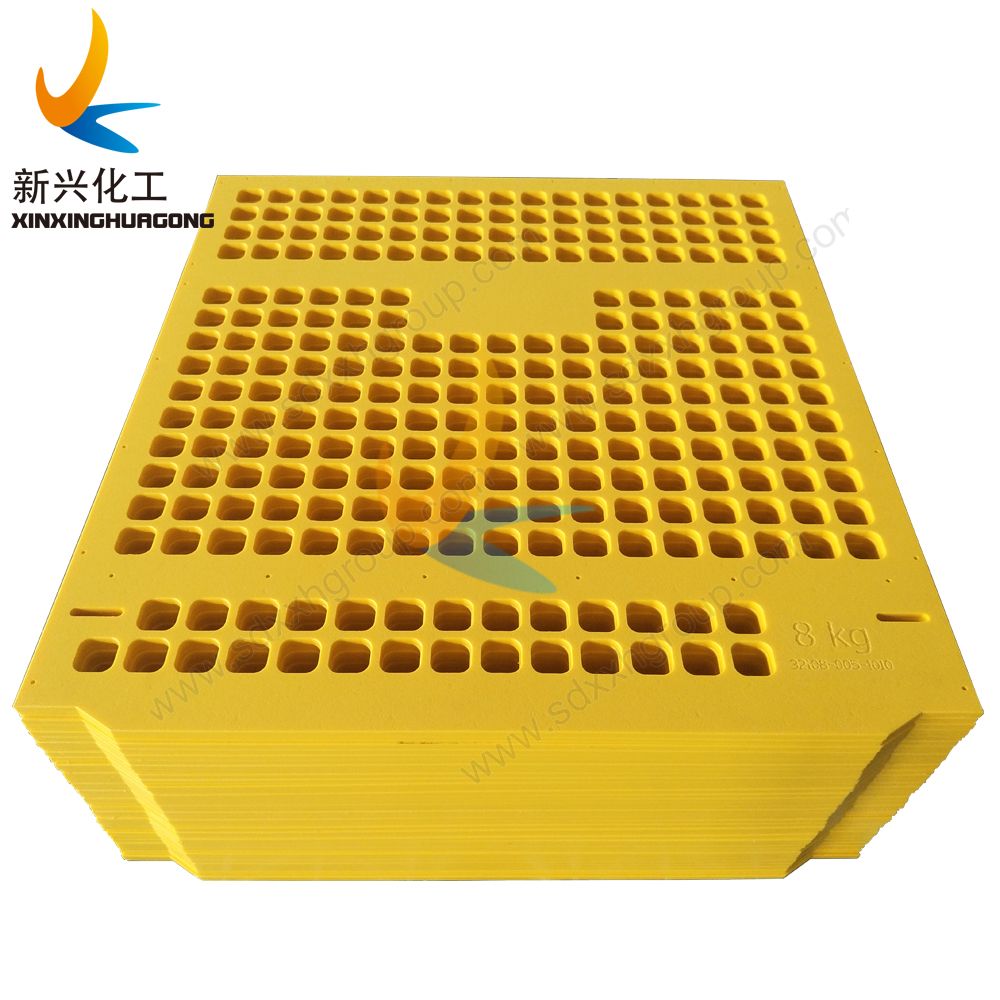

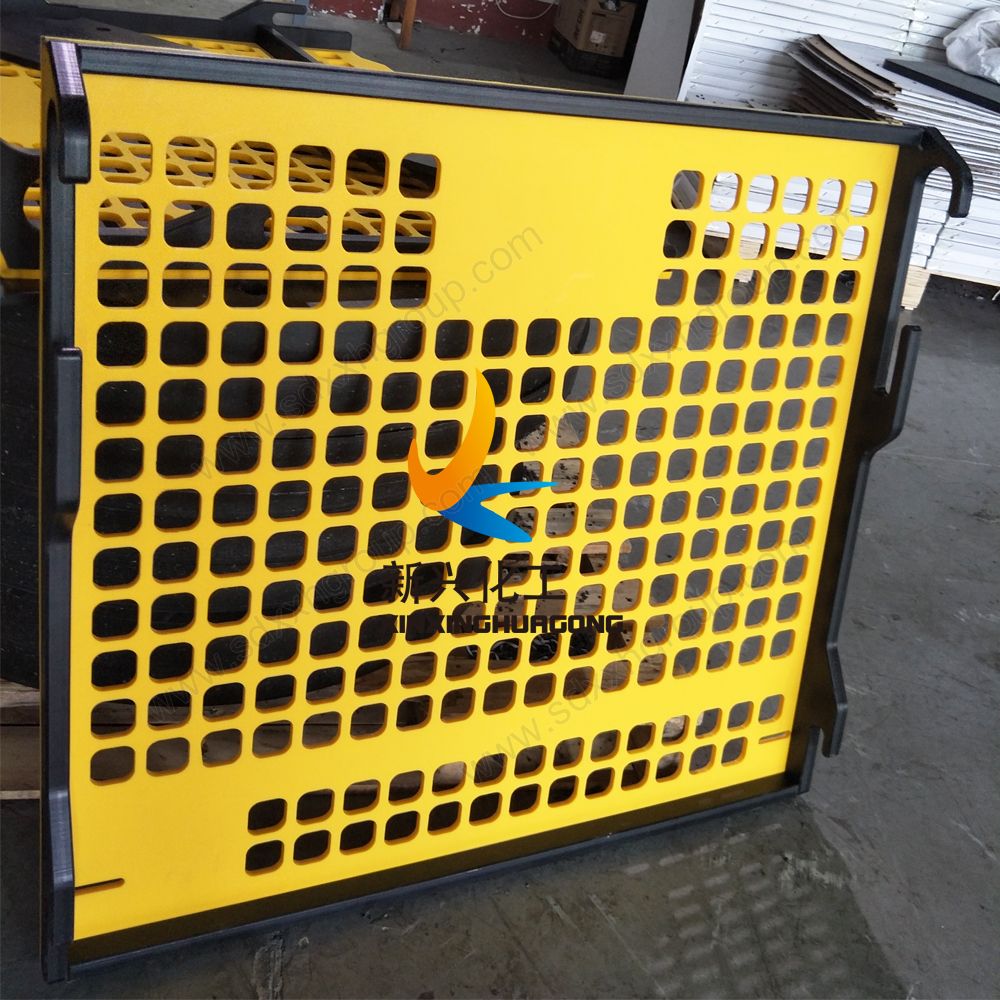

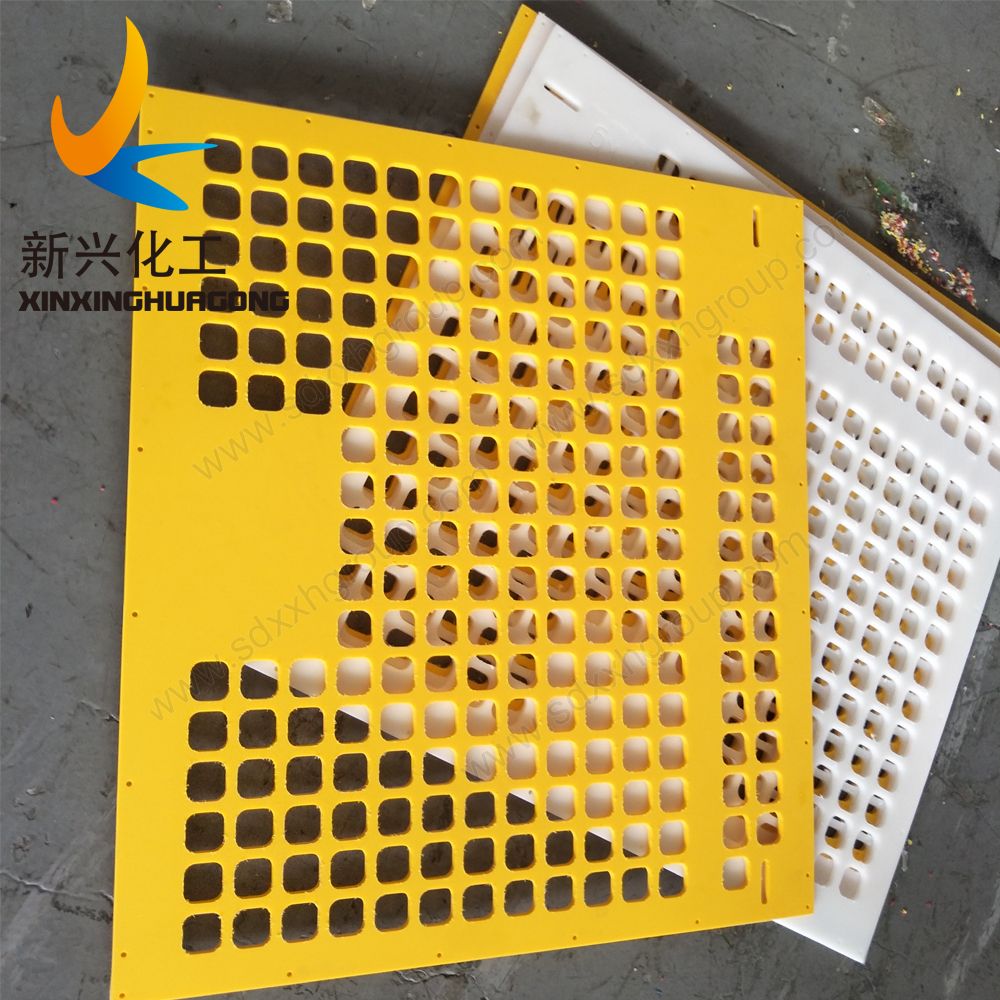

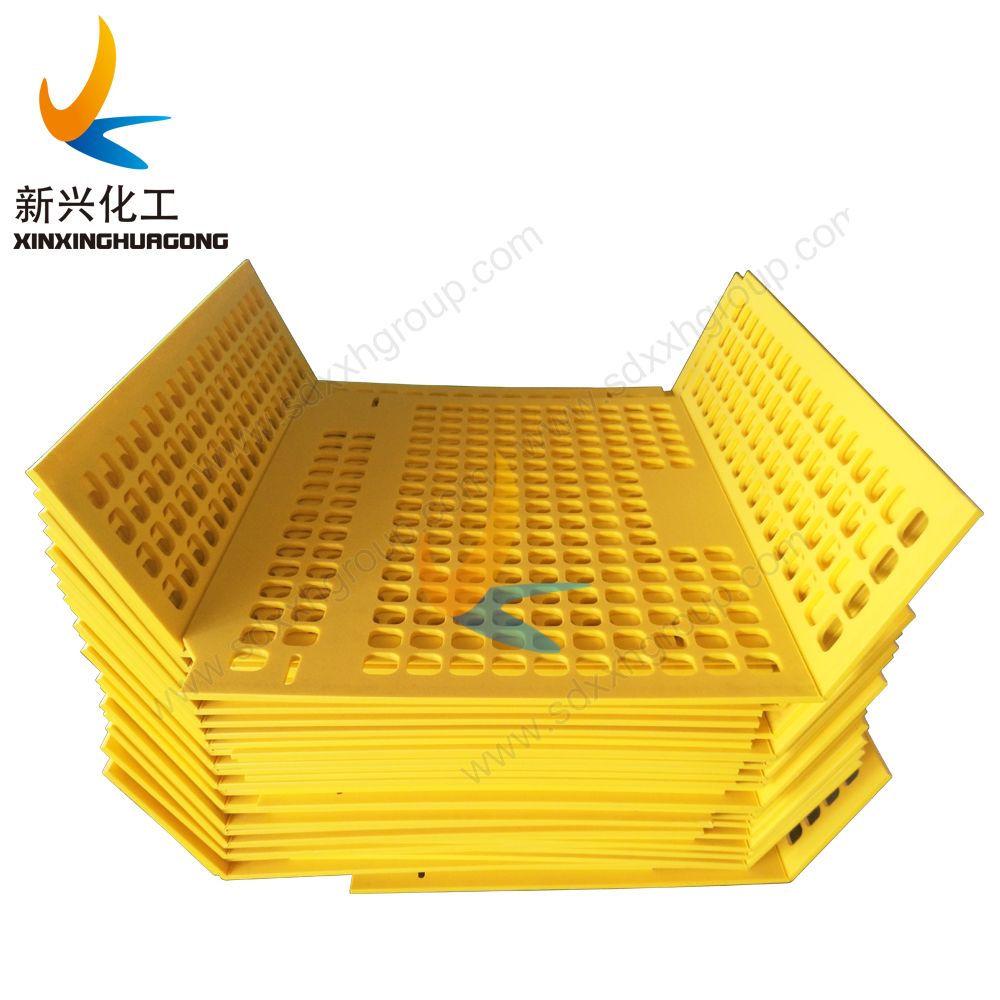

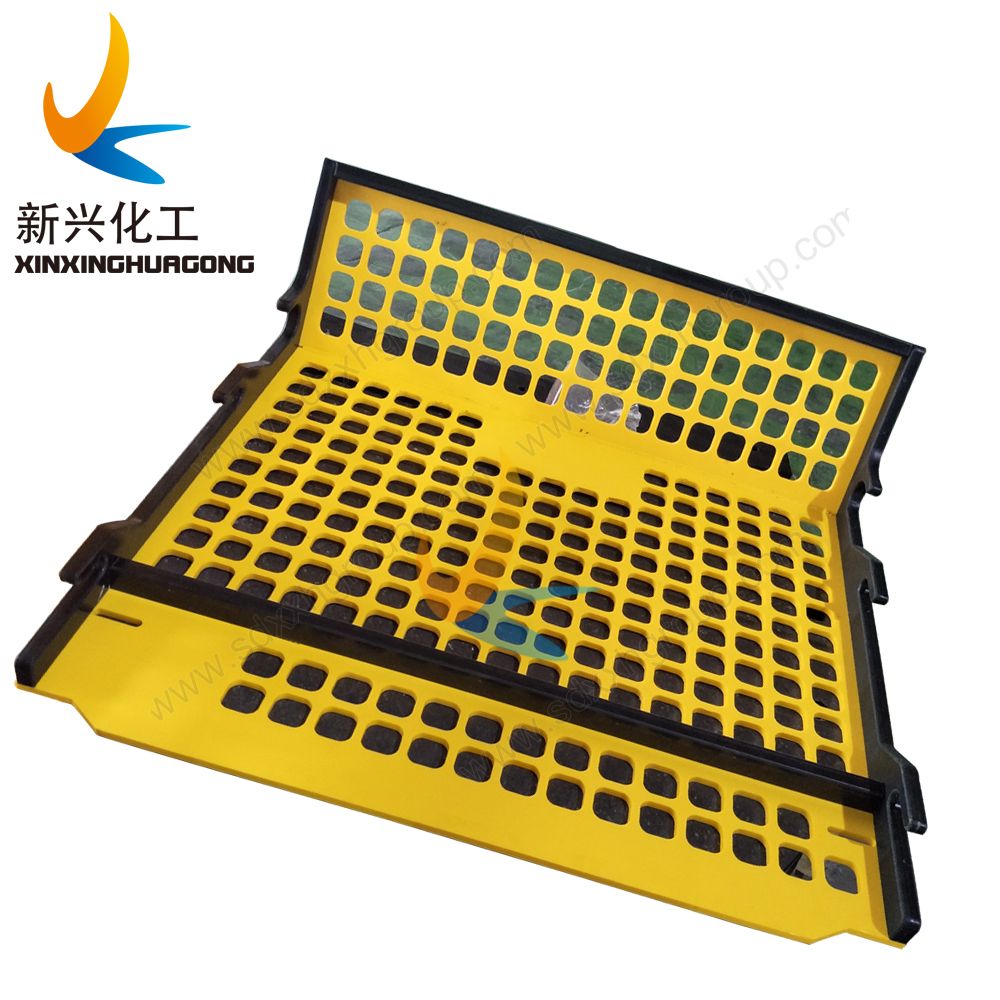

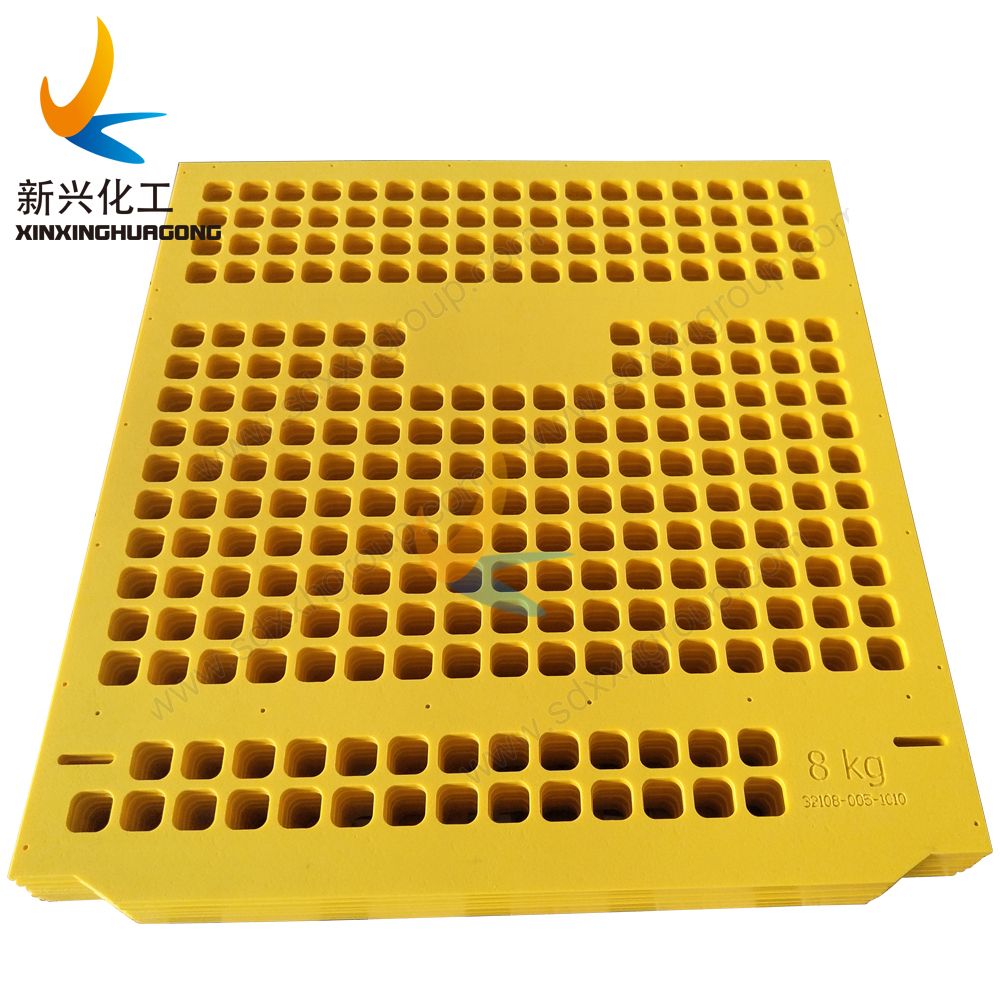

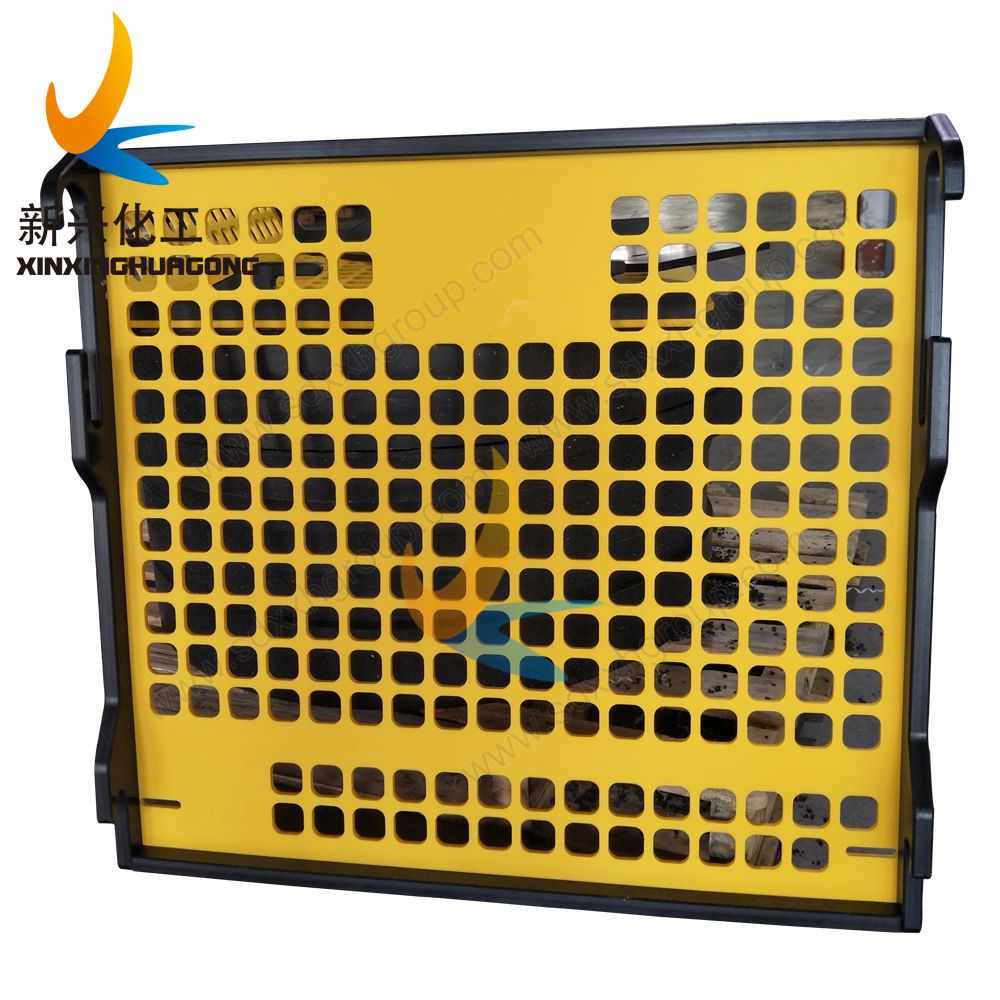

UHMWPE conveyor guards corrosion free guard plate

Lots of manufacturers have transitioned a number of customers to Conveyor Guard which is a plastic mesh, conveyor guarding system which improves safety in the materials handling industry. Complementing the Hungry Board, this corrosion free and lightweight guard requires no painting, is easily installed and allows for quick guard removal during maintenance operations.

Inquire Now Next Product

HDPE /UHMWPE coneyor guard plate

Hdpe Sheet Advantages

. Corrosion resistant and impact resistant

· Environment and disposal technology

· Lining technology

· Mechanical engineering

· Good mechanical properties

· UV-resistant

· Physiologically safe

· Good sliding properties

· Nearly no moisture absorption

Hdpe Specifications

PROPERTY	UNIT	VALUE / RANGE
Tensile Strength, Yield at 23 C	MPa	23.0 - 29.5
Tensile Strength, Break at 23 C	MPa	30.5 - 33
Elongation, Yield	%	9 - 18
Elongation, Break	%	600 - 1350
Tensile Modulus at 23 C	MPa	900 - 1550
Flexural Strength, Yield	MPa
Flexural Modulus	MPa	970- 1380
Compressive Strength	MPa
Izod Notched	J/m (kJ/m2)	71 - 159 (20)
Izod Unnotched	J/m	No Break

Specification:

*Custom shaped high density polyethylene guard panel with holes for visibility and ventilation.

*Multiple angle options possible for improved fitment.

*Panel sizes – up to 3000mm long.

*Weight of each guard is punched into the panel to help assess the manual handling risk during removal.

*Allows safe hanging on handrails during maintenance.

Tags: UHMWPE panels, UHMWPE guard plate, UHMWPE mesh plate, conveyor guard panels, HDPE protection plate
