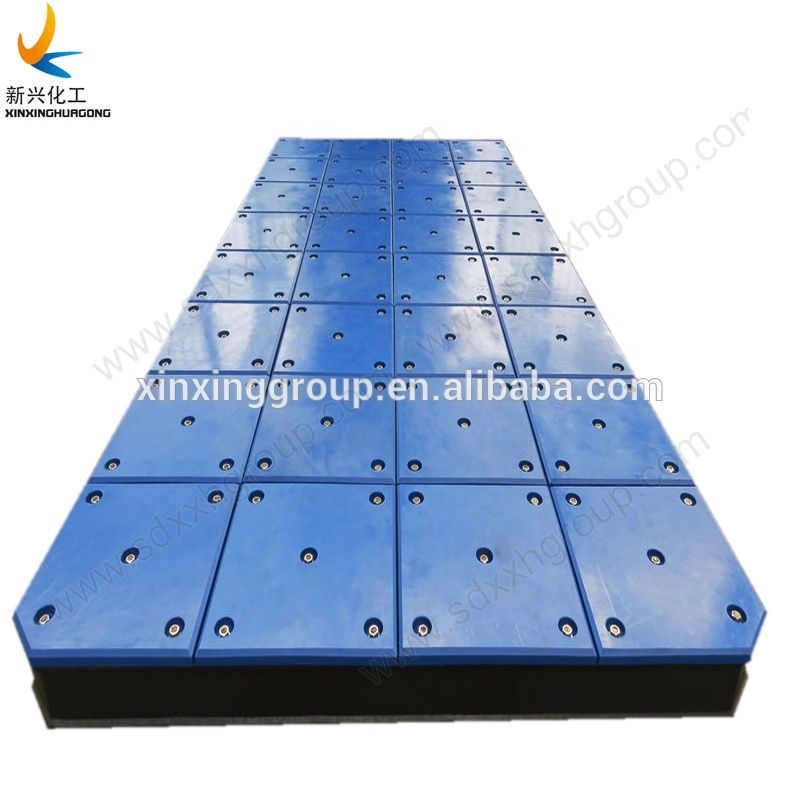

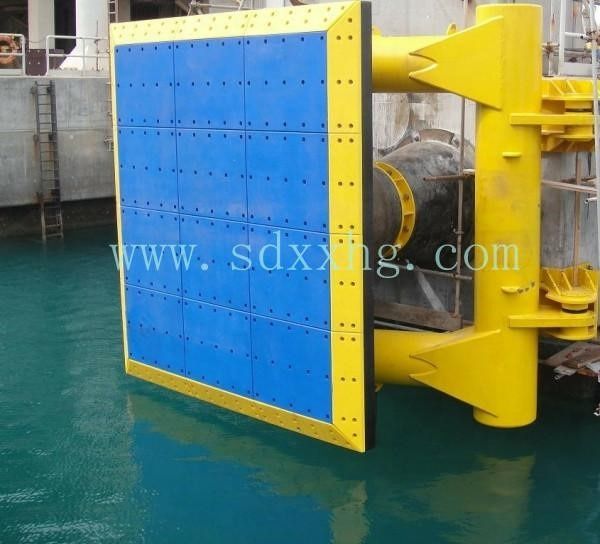

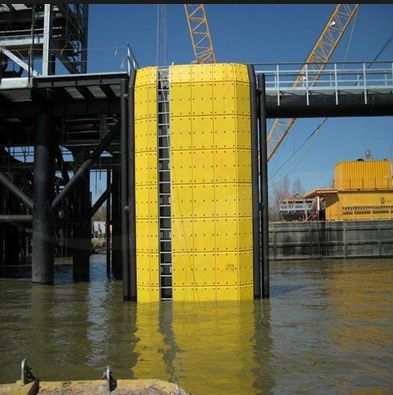

UHMWPE panel impact resistant marine fender facing pads

Marine fender impact facing panels

Ultra-high molecular weight polyethylene(UHMWPE) dock fender could avoid the impact damage between ships and dock. Because of the high impact resistance performance, UHMWPE dock fender instead of the traditional steel ones is widely used in ports and docks at home and abroad.

Our UHMWPE marine fenders are made from virgin uhmwpe material, which is much superior to wood and rubber in building marine constructions or coastal protective structures. UHMWPE marine fenders allow vessels to glide easily along the surface, protecting hulls and dock structures. Impervious to marine bore worms with minimum cleaning.

Inquire Now Next Product

Dock bumper panels marine fender pads

UHMWPE panel impact resistant marine fender facing pads

Advantages of UHMWPE impact resistant marine fender facing panels

UHMWPE Fender Face Pad Properties:

1.Abrasion resistance

2.High energy absorption

3.Impact resistance

4.Self-lubricating

5.Zero water absorption

6.Chemical resistance

7.Low coefficient of friction

8.Excellent temperature property

9.High tensile strength

10.UV-resistant

11.light weight and anti-aging

Technical data of UHMWPE fender pads:

Property	Unit	Value
Density	g/cm3	0.93-0.96
Average molecular weight	g/mol	3million- 10 million
Tensile strength (23°C in air)	MPa	22
Breaking strength	MPa	42
Tensile strain at break	%	600
Charpy impact strength (notched)	mJ/mm2	No break
Ball indentation hardness	N/mm2	42
Shore hardness	--	65-70
Abrasion	%	70-80, steel = 100
Static Friction Coefficient	--	≤0.16
Kinetic Friction Coefficient	--	≤0.10
Water Absorption	--	NIL
Elongation at break at 23°C	%	≥300
Temperature Resistance	°C	-269 to +85
Melt Temperature	°C	130-140

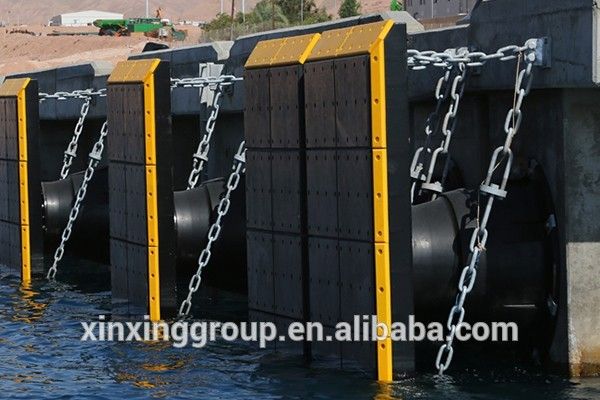

Application of UHMWPE marine fender pads

Application

1.Harbor Construction Boats

2.Individual profiles on quay walls

3.Rubbing Strips

4.Wear Pads to cover wood and rubber

5.Low friction bushings

6.Truck Docks Pilings

7.Fenders for dock plate protection

8.Wear plates and slides

9.Dredges

10.Floating Docks

11.Slide wall fenders to protect

12.Wear plates where dock meets pillage

13.dredge from barges

14.Bushings for pivots

Size is cuttalbe.

UHMWPE Sheets could be reprocess under customer's requirements.
