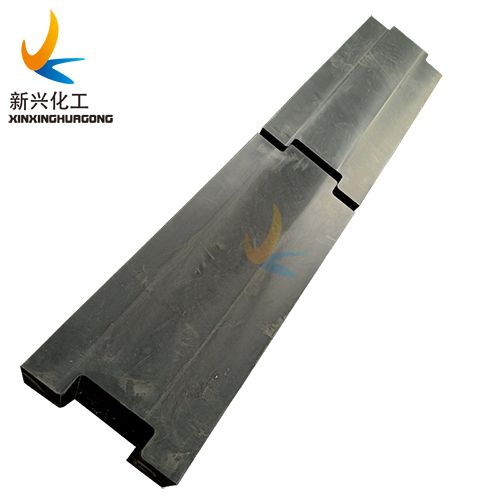

UHMWPE marine fender pads PE wear resistant plastic strips

UHMWPE marine fender are used mostly on the SCP Fender and Cone fender which are called the latest in state-of-the-art moulded fender products.The hdpe possesses a low coefficient of friction which provides a smooth sliding surface for the vessel to travel along the fender face.The following character also make the UHMW-PE Fender become the strongest and most popular fender in the world.

Here you can find all kinds of HDPE Sheet you want!

UHMWPE marine fender pads PE wear resistant plastic strips

UHMWPE marine fender pads PE wear resistant plastic strips

UHMWPE marine fender pads PE wear resistant plastic strips

UHMWPE marine fender pads PE wear resistant plastic strips

UHMWPE marine fender pads PE wear resistant plastic strips

UHMWPE marine fender pads PE wear resistant plastic strips

UHMWPE marine fender pads PE wear resistant plastic strips

UHMWPE marine fender pads PE wear resistant plastic strips

Advantages of UHMWPE sheet wear strips

The following character also make the UHMW-PE Fender become the strongest and most popular fender in the world
XINXING marine fender facing pad is made of HDPE/UHMWPE material

Because HDPE/UHMWPE material has the following advantage :

--Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel

--Do not absorb moisture and will not swell up over time due to exposure outdoors.

--Good impact intensity,Do not lose their impact strength over time.

--Good breaking elongation,so they will bend but not break under extreme loads.

--Non-stick surface, easy to clean.

--Corrosion and chemical resistant.

--Noise- absorption, Vibration-absorption

--Super compression strength

--15 Percent the weight of steel pads and easier to handle

--Compressive loads up to one million pounds

--Up to 15,000 pounds per square foot

--Non-Conductive

--Non-Toxic and smell

Benefits:

--Work in sub zero temperatures

--Easy to mount, replace

--Reduced downtime.

--Lower maintenance costs.

--Storage-Friendly

--Durable & Long Lasting
--Cost Efficient compared to Steel or Aluminum

--Safer to use in the field compared to other wood based pads.


Hdpe Specifications

PROPERTIESTest   MethodUnitValue
I.Physical   Properties
DensityISO   1183g/cm30.96
Water   absorption 24hrsISO   62%0.01
II.Thermal   Properties
Heat   deflection temperature - HDT/AISO   75-2ºC42
Min.   service temperature
ºC-269
Max.   service temperature-Long Term
ºC90
Thermal   conductivity at 23 ºCDIN   11359W/(K*m)0.42
Coefficient   of linear thermal expansionISO   1135910-4*K-12
Flammability   Rating(6mm thickness)UL   94-HB
III.Mechanical   Properties at 23ºC
Tensile   strength at yieldISO   527-2MPa17
Tensile   strength at breakISO   527-2Mpa40
Elongation   at breakISO   527-2%>50
Modulus   of elasticity after tensile testISO   527-2MPa650
Modulus   of elasticity after flexural testISO   178MPa800
Hardness   - Shore DDIN   53505
61
Charpy   impact strengthISO   179kJ/m2N.   B.
Friction   coefficientDIN   53375
0.25
IV.Electrical   Properties  at 23ºC
Dielectric   constant at 1 MHzIEC   60250106Hz3.1
Dielectric   loss factor at 1 MHzIEC   60250106Hz0.0001
Volume   resistivelyIEC   60093Ohm   (Ω) * cm>1014
Surface   resisivelyIEC   60093Ohm   (Ω)>1011
Dielectric   strengthIEC   60243-1kV/mm45
NOTE:   1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m


APPLICATION

⇒ Fender panel facing pads
⇒ Fender pile rubbing strips
⇒ UE-V fender shields
⇒ Facing strips for jetties and wharves
⇒ Lock entrance and lock wall protection
⇒ Mitres on lock gates
⇒ Bridge buttress protection
⇒ Pontoon pile guide bearings
⇒ Fast-launch lifeboat slipways
⇒ Beltings for smaller workboats
