CNC UPE machined parts OEM products

UHMWPE material has exceptionally low coefficient of friction offering superb sliding properties and is one of the best plastics for wear/abrasion resistance meanwhile tough and impact resistant even at cryogenic temperatures. As a result, it is definite that UHMW polyethylene is a wonderful engineering plastic that can solve many problems that other engineering plastics cannot.

Inquire Now

UHMWPE irregular parts OEM machined parts

Advantages of UHMWPE irregular parts:

1.Abrasion highest plastic, seven times higher than carbon steel, four times higher than PTFE.

2.Self-lubricating performance

3.Impact strength, 2 times higher than that of polycarbonate, 5 times higher than ABS.

4.Nonstick surface of product compared with other materials is not easy to attach, strong anti-adhesion properties.

5.Corrosion resistance: at a certain temperature and humidity resistant to concentrated acid, alkalis, corrosive chemicals, high chemical stability

Data sheet of UHMWPE

No.	Item	Test Method	Result
1	Coefficient of Friction	ASTM D1894-14	0.13
2	Molecular weight(g/mol)	ASTM D4020	7million
3	Density	ASTM D792-13	0.94-0.95
4	Izod Notched Impact Strength	ASTM D256-10^E1	NB
5	Shore Hardness	ASTM D2240-15	67
6	Tensile Strength at Yield	ASTM D638-14	33Mpa
7	Elongation at Break	ASTM D638-14	>200%
8	Compressive Strength	ASTM D 695	30 MPA
9	Water absorption	/	<0.01%
10	Melting temperature	/	138℃

Application of CNC machined parts of UPE

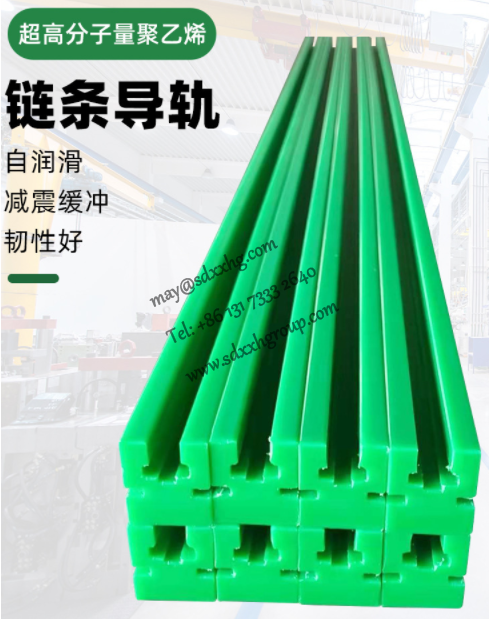

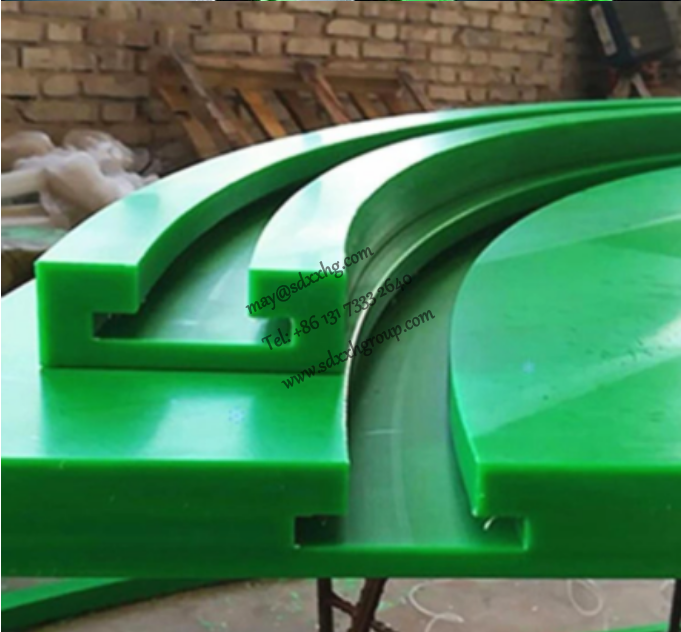

Transportation machinery	Guide rail, convey belt, convey device slide block seat

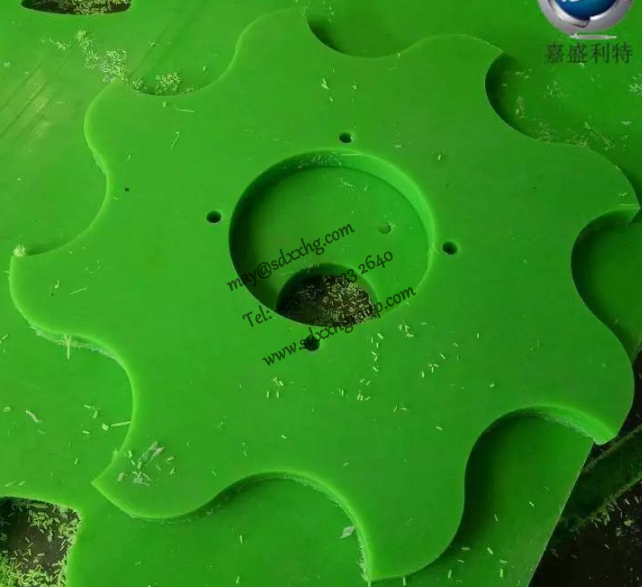

Food processing machinery	planet wheel, bottle convey, gear ,counting bolt, filler bearing, bottle holder parts
Paper making machinery	water suction tank cover , bearing , skew guide wheels
Port machinery/ship machinery	Ship parts, suspension bridge side roller, friction block.
Ordinary machinery	All types of gear, bushing, liner, sliding plate, clutch, guiding unit, brake
Other	Cooling machine, nuclear power plant shield, electric galvanized parts, and ultra-low temperature machine parts

CNC UPE machined parts OEM products

Tags: UHMWPE guide rail, UHMWPE roller, sliding plate, ship parts, conveyor scraper blades, Cribbing block
