UHMWPE Chain Track Guides

Fight friction and reduce costs with long-wearing XINXING UHMW Belt and Chain Guides. Available in stock, XINXING offers the widest range of standard profiles in the industry for guiding belts, chain and cables. Standard crowned and flat versions are also available for use in guide rail systems.

Product Description

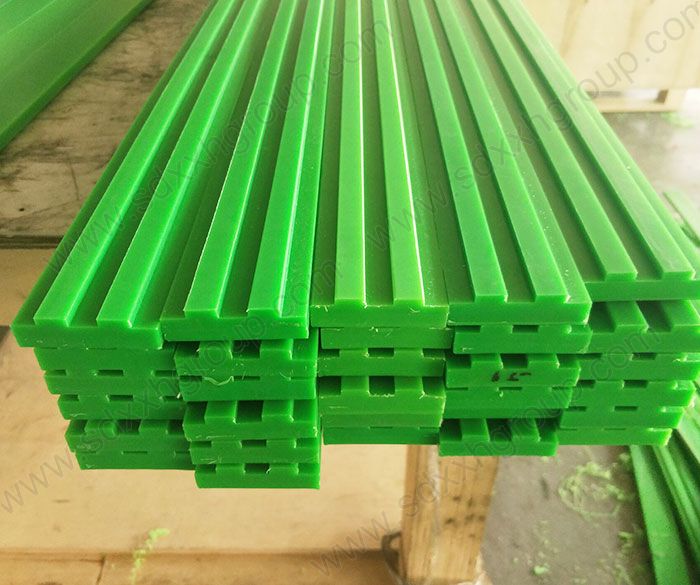

UHMWPE Chain Track Guides

Chain guides are available in the channel style, raised track, and as a channel with a raised track. These chain guides are also available as inserts for mounting channels. The channels are available as galvanized or stainless steel. A mounting channel is welded or bolted into place and allows the UHMW to expand and contract without buckling.

Wide variety of standard products in stock, ready to ship today!

Two-piece guide and channel design simplifies installation and replacement.

Our Chain Guides are produced using only the highest quality virgin black UHMW-PE material to ensure minimum friction and maximum wear resistance.


All kinds of UHMWPE Chain tracks available with us!

UHMWPE Chain Track Guides




Because XINXING UHMWPE material have the following characters:


Excellent abrasion resistance

 Low coefficient of friction

 No moisture absorption

 Corrosion resistant

 Excellent noise abatement

 Excellent impact strength

 Maintains key physical properties to -200℃


So our XINXING UHWMPE Chain guides profiles are perform as follows:


1.Ensure longer belt and chain life

 Longer guide life

 Simplified installation and replacement


 In stock, ready to go!

 Longer Belt and Chain Life – XINXING Guides are far slicker than steel or other thermoplastics, resulting in less wear on expensive transfer belts and drive/attachment chains.


2.Reduced Wear – XINXING Guides outwear abrasion-resistant steel by 3 to 1 and PTFE by 5 to 1. UHMW has the highest abrasion resistance of any thermoplastic for longer guide life, even in abrasive environments.


3.Precision Machined – All XINXING Chain Guides are machined to extremely close tolerances from compression molded sheets. This process results in a higher molecular weight and superior performance than possible with extruded UHMW profiles.


For extruted UHMW Profiles ,please contact us for speciality .


More Advantages:

Quiet operation


 Excellent chemical and corrosion resistance. See product specification for details.

 Mounting channels available to simplify installation

Different shape like C,Z,U T and other shape is available.

UHMWPE Chain track applications:

UHMWPE Chain Track Guides
