UHMWPE Sheet

Home > Products > By Material > UHMWPE Sheet > Dual color UHMWPE panel
  • Dual color UHMWPE panel

  • Dual color UHMWPE panel

  • Dual color UHMWPE panel

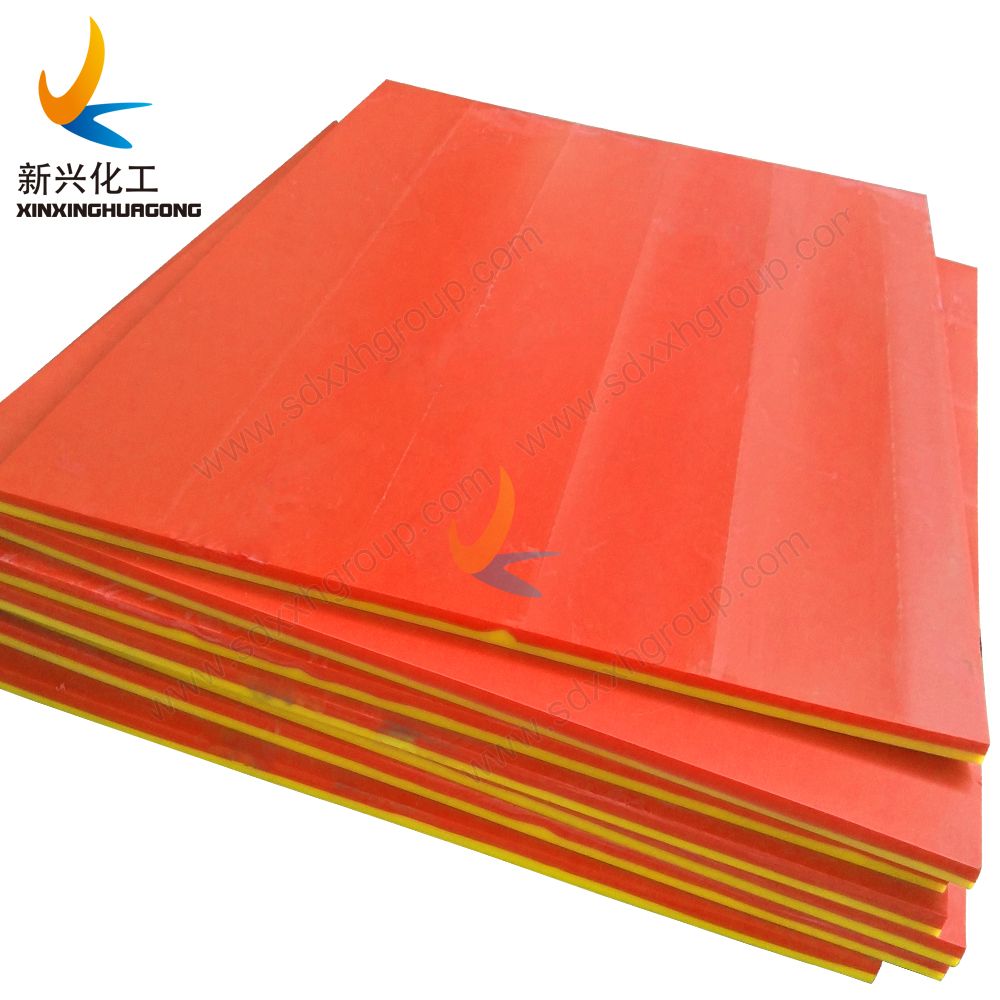

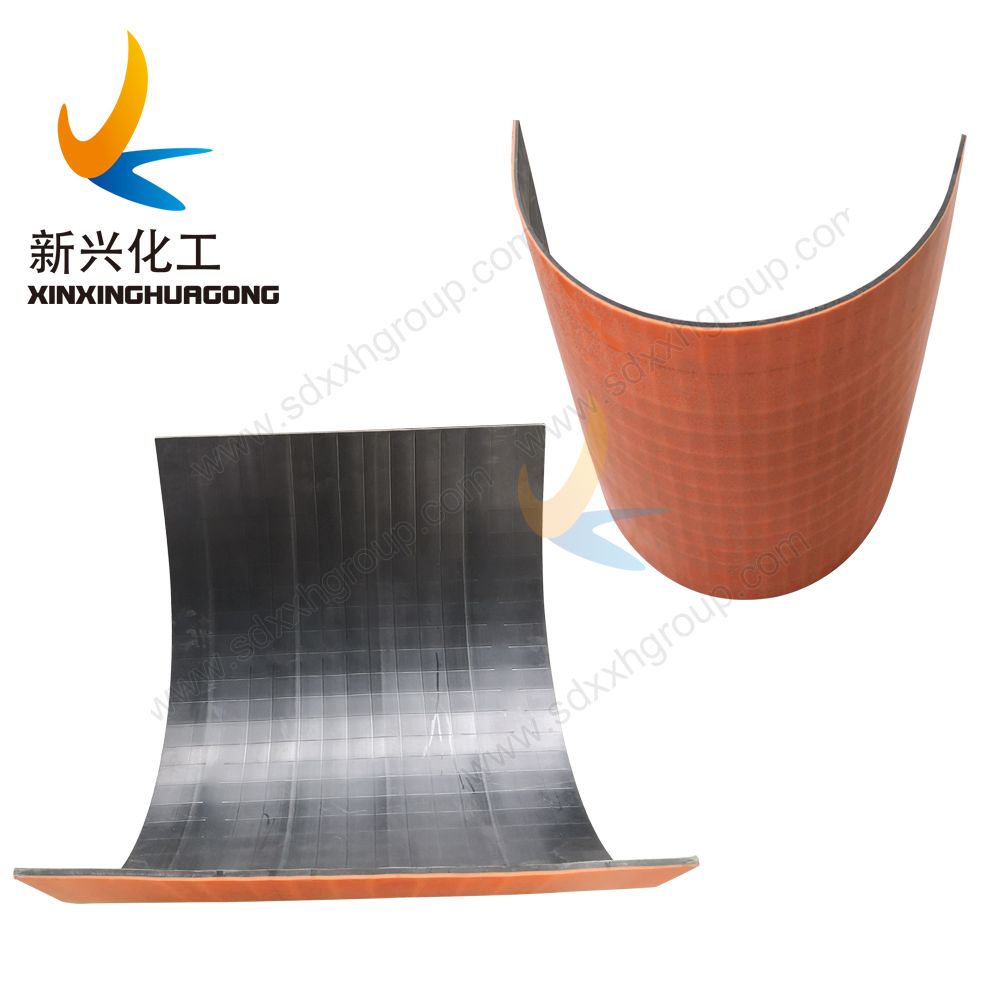

Dual color UHMWPE panel

UHMWPE Perform in Industry

UHMWPE sheet has an incredible resistance to abrasion. It will outperform almost any engineering plastic for abrasion resistance and is probably one of the best materials for lining chutes and hoppers for products such as sand, aggregate and concrete or any other highly abrasive moving product.

Another important property is it's incredibly low co-efficient of friction. It is one of the lowest of all engineering plastics and will produce components with a very high life span with very low drag, which means very little will stick to it. Its also resistant to many dilute acids, solvents and cleaning agents.

UHMWPE has a maximum continuous operating temperature of plus 90°C and a short term operating temperature of plus 120°C. Its a very tough material, with the highest impact strength of any thermoplastic presently made.

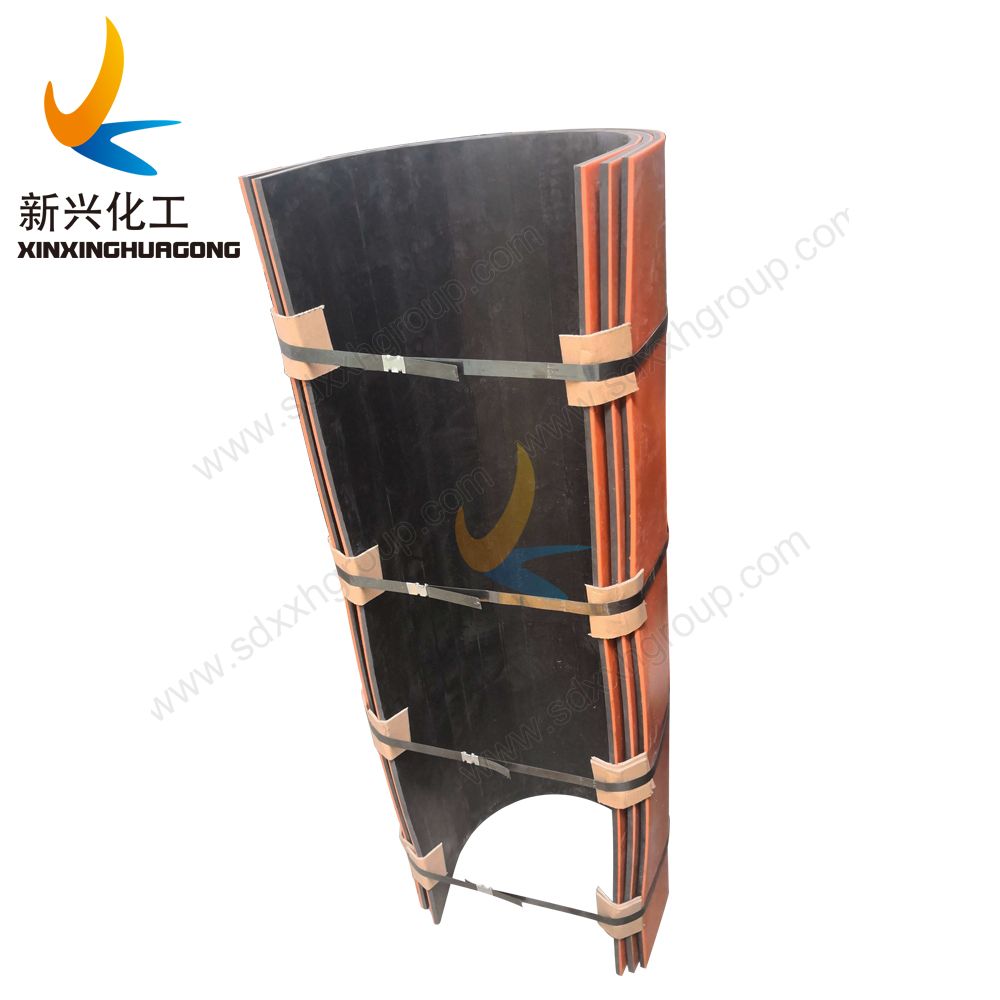

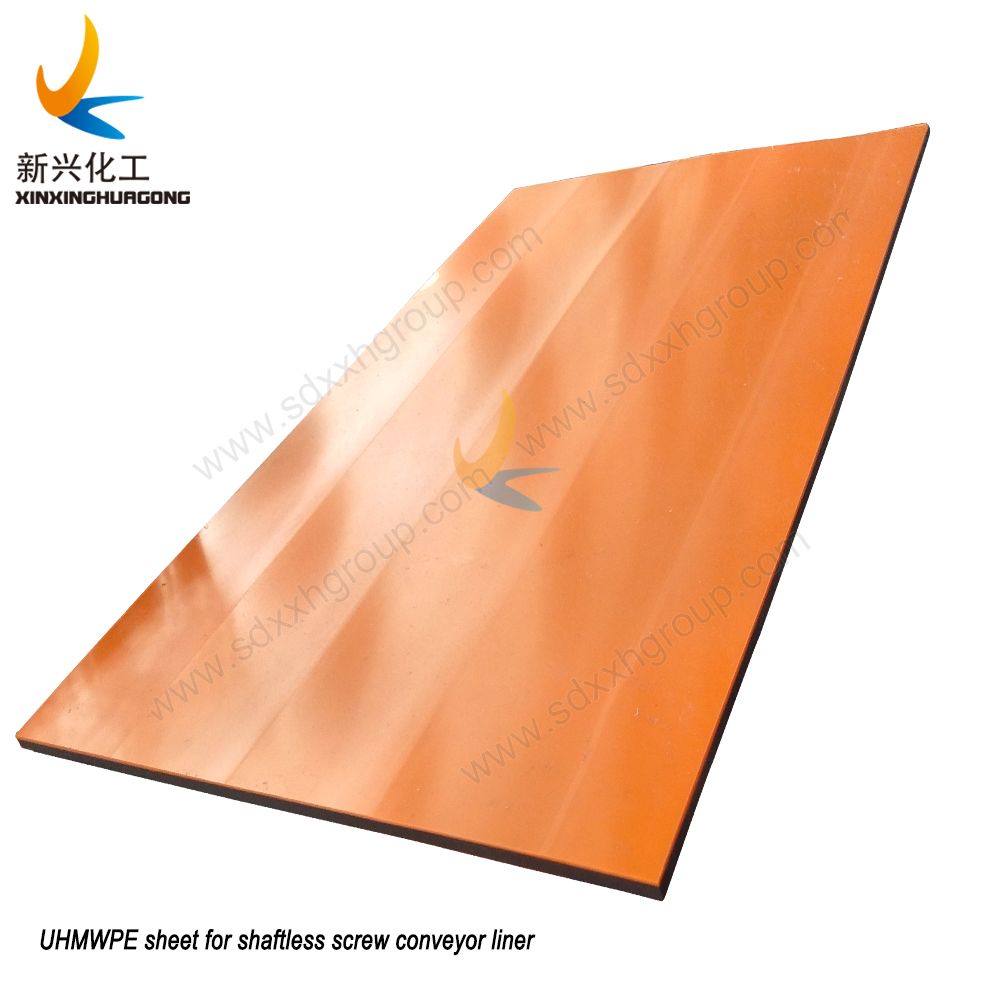

Abrasion resistant UHMWPE liner for shaftless conveyor

Dual color UHMWPE panel

Dual color UHMWPE panel

Dual color UHMWPE panel

Dual color UHMWPE panel

Dual color UHMWPE panel

Dual color UHMWPE panel

What is UHMWPE Sheet used for?

Because UHMWPE sheet has excellent abrasion resistance it is often used for lining chutes and hoppers in aggressive and highly abrasive environments, which is why you’ll find it at the quarry. Its also found in food production environments where high volumes of containers like cans or bottles need to be guided along conveyors or production lines.


Because it has very low moisture absorption, it is also found in some high demand areas of marine applications. UHMWPE is also sometimes used in some cryogenic components due to its low operating temperature abilities.

Due to its resistance to wear and impact, UHMWPE continues to find increasing industrial applications, including the automotive, manufacturing and bottling sectors.

Application of Dual color UHMWPE sheet

Our shaftless screw conveyor liner is made of UHMWPE material that over 5 million molecular weight, and it features of extremely wear resistant, impact resistant, oil proof, Hydrolysis resistance, abrasion resistant, self-lubrication, non-stick, even the temperature below -100 Celsius degree, it still keeps the features.

Good flexible ensures the perfect bending effect, light weight easy to install and dismantle, increase the work efficiency and the extend the service life!


Accept Private order: double color bending sheet( warning the thin layer to protect the equipment)

External diameter: φ200-1500mm thickness: 5-20mm, length: 1000-2500mm


Any interest, please contact us!
