wear warning dual colored shaftless screw conveyor lining sheet

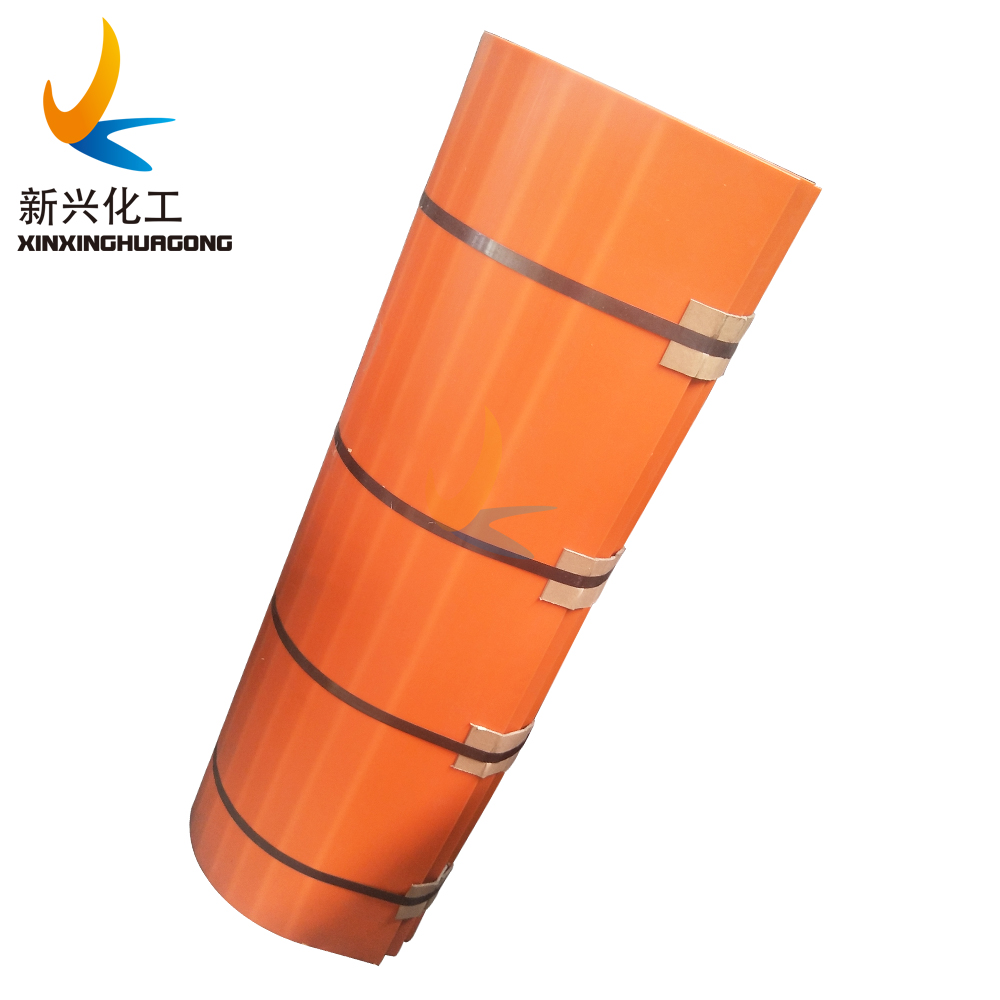

Wear-resistant Trough Liner

A major benefit of shaftless screw conveyors is the elimination of intermediate hanger bearings to support the screw sections. Intermediate hanger bearings are a constant maintenance issue and can be a restriction to bulk material flow. Shaftless screw conveyors rely on trough liners to support the shaftless spiral and provide a bearing surface.

Selection of the appropriate liner material and attachment method is critical to ensuring a relatively low maintenance shaftless screw conveyor.

Because UHMWPE sheet has excellent abrasion resistance it is often used for lining chutes and hoppers in aggressive and highly abrasive environments, which is why you’ll find it at the quarry. Its also found in food production environments where high volumes of containers like cans or bottles need to be guided along conveyors or production lines.

螺旋输送机衬板/U型耐磨衬板的加工工艺：采用500万超高分子量聚乙烯压制板，经过铣床把表面处理厚度均匀，按照图纸再由折弯机折出弧度；

 The processing: adopt over 5 million molecular weight UHMWPE compressed sheet, treat the surface through millers to ensure the uniform thickness, then fold out the radians by the bending machine according to the drawings.

螺旋输送机衬板/U型耐磨衬板的规 格：根据螺螺旋直径来定，也可用户直接提供衬板直径、周长、厚度等，**可以加工到3米长度；

Specifications:

Thickness: 6mm-25mm

Length: 1000mm-2500mm

External diameter: φ200-1500mm

Size customized.
